Text from PDF Page: 006

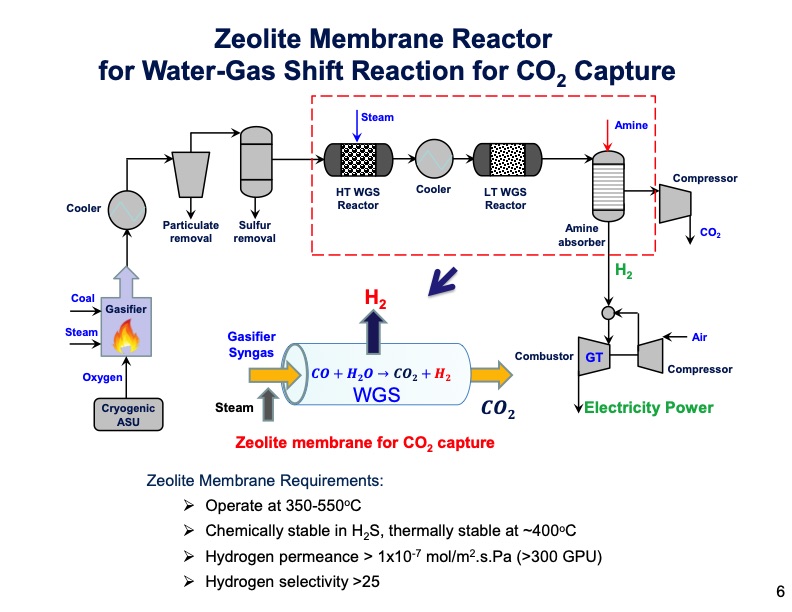

Zeolite Membrane Reactor for Water-Gas Shift Reaction for CO2 Capture Steam HT WGS Reactor Amine Cooler LT WGS Reactor Amine absorber Cooler Coal Gasifier Steam Oxygen Cryogenic ASU Particulate removal Sulfur removal Gasifier Syngas Compressor CO2 H2 H2 GT Air Combustor Steam Electricity Power πͺπΆ + π―ππΆ β πͺπΆπ + π―π WGS πͺπΆπ Compressor Zeolite membrane for CO2 capture Zeolite Membrane Requirements: ο Operate at 350-550oC ο Chemically stable in H2S, thermally stable at ~400oC ο Hydrogen permeance > 1x10-7 mol/m2.s.Pa (>300 GPU) ο Hydrogen selectivity >25 6PDF Image | Zeolite Membrane Reactor CO2 Capture
