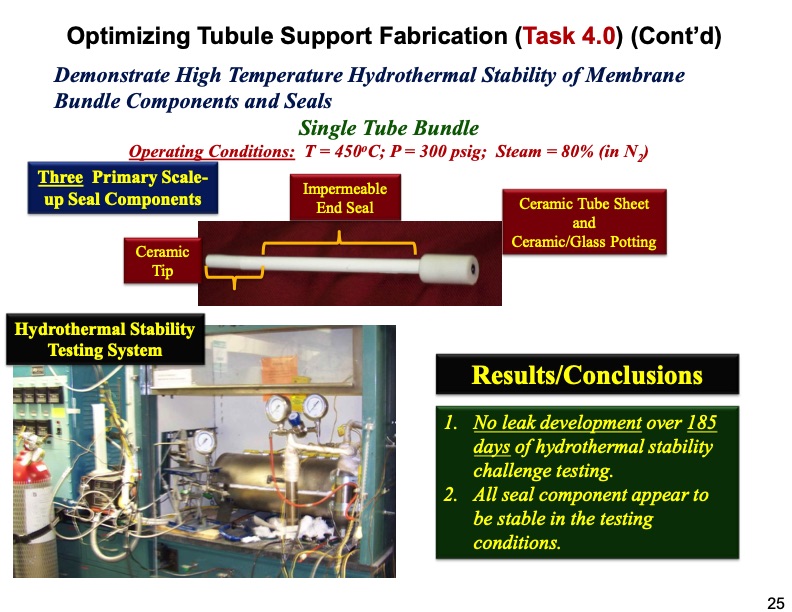

Optimizing Tubule Support Fabrication (Task 4.0) (Cont’d) Demonstrate High Temperature Hydrothermal Stability of Membrane Bundle Components and Seals Single Tube Bundle Operating Conditions: T = 450oC; P = 300 psig; Steam = 80% (in N2) Three Primary Scale- up Seal Components Ceramic Tip Hydrothermal Stability Testing System Impermeable End Seal Ceramic Tube Sheet and Ceramic/Glass Potting Results/Conclusions 1. No leak development over 185 days of hydrothermal stability challenge testing. 2. All seal component appear to be stable in the testing conditions. 25PDF Image | Zeolite Membrane Reactor CO2 Capture
