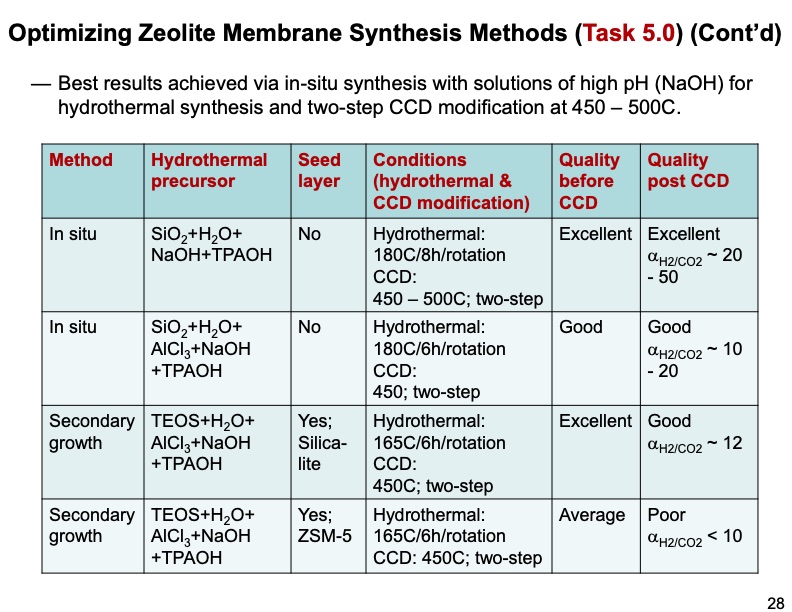

Optimizing Zeolite Membrane Synthesis Methods (Task 5.0) (Cont’d) — Best results achieved via in-situ synthesis with solutions of high pH (NaOH) for hydrothermal synthesis and two-step CCD modification at 450 – 500C. Method Hydrothermal precursor Seed layer Conditions (hydrothermal & CCD modification) Quality before CCD Quality post CCD In situ SiO2+H2O+ NaOH+TPAOH No Hydrothermal: 180C/8h/rotation CCD: 450 – 500C; two-step Excellent Excellent aH2/CO2 ~ 20 - 50 In situ SiO2+H2O+ AlCl3+NaOH +TPAOH No Hydrothermal: 180C/6h/rotation CCD: 450; two-step Good Good aH2/CO2 ~ 10 - 20 Secondary growth TEOS+H2O+ AlCl3+NaOH +TPAOH Yes; Silica- lite Hydrothermal: 165C/6h/rotation CCD: 450C; two-step Excellent Good aH2/CO2 ~ 12 Secondary growth TEOS+H2O+ AlCl3+NaOH +TPAOH Yes; ZSM-5 Hydrothermal: 165C/6h/rotation CCD: 450C; two-step Average Poor aH2/CO2 < 10 28PDF Image | Zeolite Membrane Reactor CO2 Capture
