PDF Publication Title:
Text from PDF Page: 036

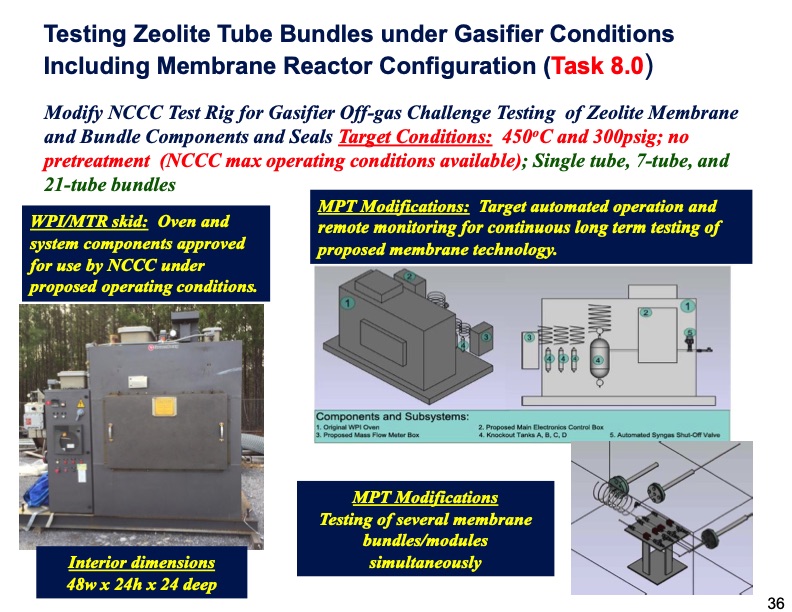

Testing Zeolite Tube Bundles under Gasifier Conditions Including Membrane Reactor Configuration (Task 8.0) Modify NCCC Test Rig for Gasifier Off-gas Challenge Testing of Zeolite Membrane and Bundle Components and Seals Target Conditions: 450oC and 300psig; no pretreatment (NCCC max operating conditions available); Single tube, 7-tube, and 21-tube bundles MPT Modifications: Target automated operation and remote monitoring for continuous long term testing of proposed membrane technology. WPI/MTR skid: Oven and system components approved for use by NCCC under proposed operating conditions. MPT Modifications Testing of several membrane bundles/modules simultaneously Interior dimensions 48w x 24h x 24 deep 36PDF Image | Zeolite Membrane Reactor CO2 Capture
PDF Search Title:
Zeolite Membrane Reactor CO2 CaptureOriginal File Name Searched:
FE0026435-BP1-Review-Presentation-05-17-17.pdfDIY PDF Search: Google It | Yahoo | Bing
