Text from PDF Page: 042

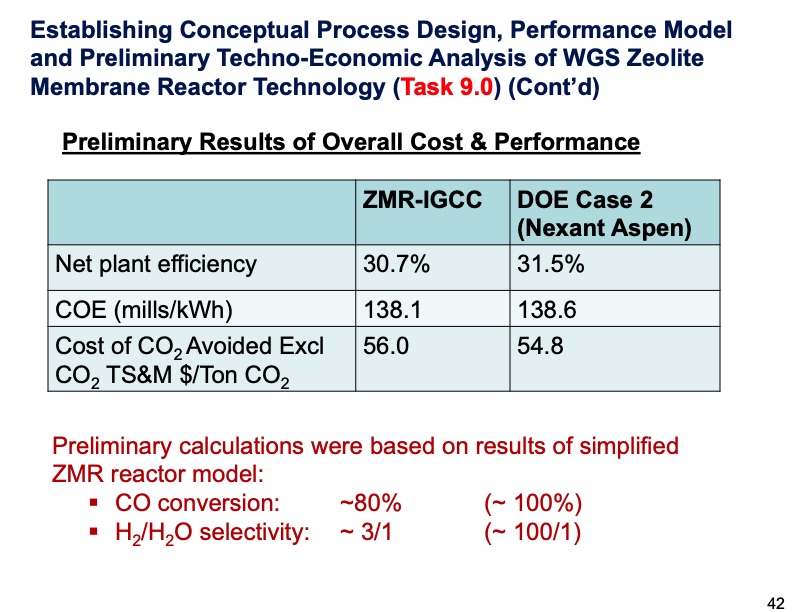

Establishing Conceptual Process Design, Performance Model and Preliminary Techno-Economic Analysis of WGS Zeolite Membrane Reactor Technology (Task 9.0) (Cont’d) Preliminary Results of Overall Cost & Performance ZMR-IGCC DOE Case 2 (Nexant Aspen) Net plant efficiency 30.7% 31.5% COE (mills/kWh) 138.1 138.6 Cost of CO2 Avoided Excl CO2 TS&M $/Ton CO2 56.0 54.8 Preliminary calculations were based on results of simplified ZMR reactor model:  CO conversion: ~80% (~ 100%)  H2/H2O selectivity: ~ 3/1 (~ 100/1) 42
