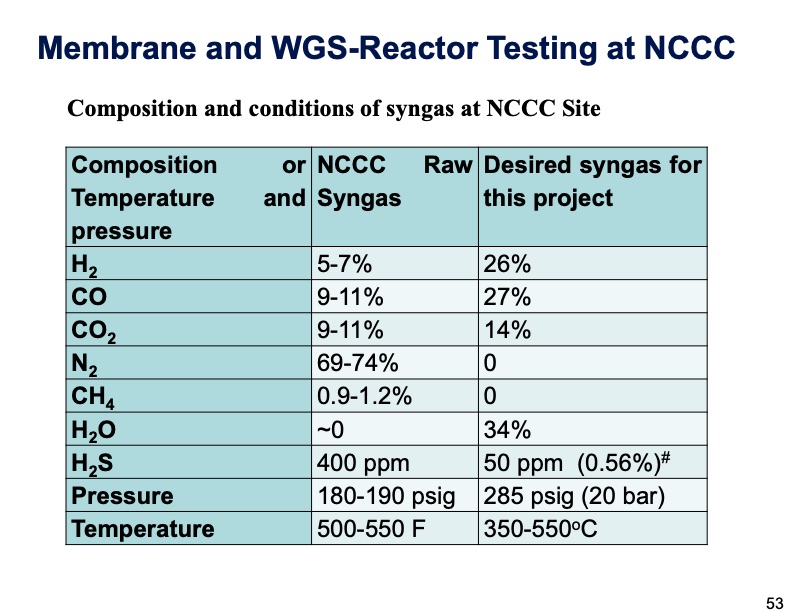

Membrane and WGS-Reactor Testing at NCCC Composition and conditions of syngas at NCCC Site Composition or Temperature and pressure NCCC Raw Syngas Desired syngas for this project H2 5-7% 26% CO 9-11% 27% CO2 9-11% 14% N2 69-74% 0 CH4 0.9-1.2% 0 H2O ~0 34% H2S 400 ppm 50 ppm (0.56%)# Pressure 180-190 psig 285 psig (20 bar) Temperature 500-550 F 350-550oC 53PDF Image | Zeolite Membrane Reactor CO2 Capture
