Zeolite Membrane Reactor CO2 Capture

PDF Publication Title:

Zeolite Membrane Reactor CO2 Capture ( zeolite-membrane-reactor-co2-capture )

Previous Page View | Next Page View | Return to Search List

Text from PDF Page: 057

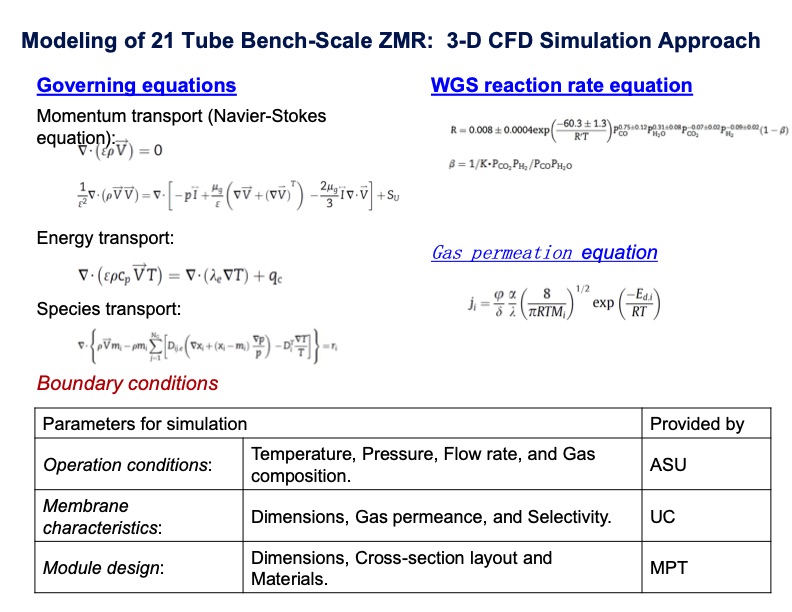

Modeling of 21 Tube Bench-Scale ZMR: 3-D CFD Simulation Approach Governing equations Momentum transport (Navier-Stokes equation): Energy transport: Species transport: Boundary conditions WGS reaction rate equation Gas permeation equation Parameters for simulation Provided by Operation conditions: Temperature, Pressure, Flow rate, and Gas composition. ASU Membrane characteristics: Dimensions, Gas permeance, and Selectivity. UC Module design: Dimensions, Cross-section layout and Materials. MPT

PDF Image | Zeolite Membrane Reactor CO2 Capture

PDF Search Title:

Zeolite Membrane Reactor CO2 Capture

Original File Name Searched:

FE0026435-BP1-Review-Presentation-05-17-17.pdf
