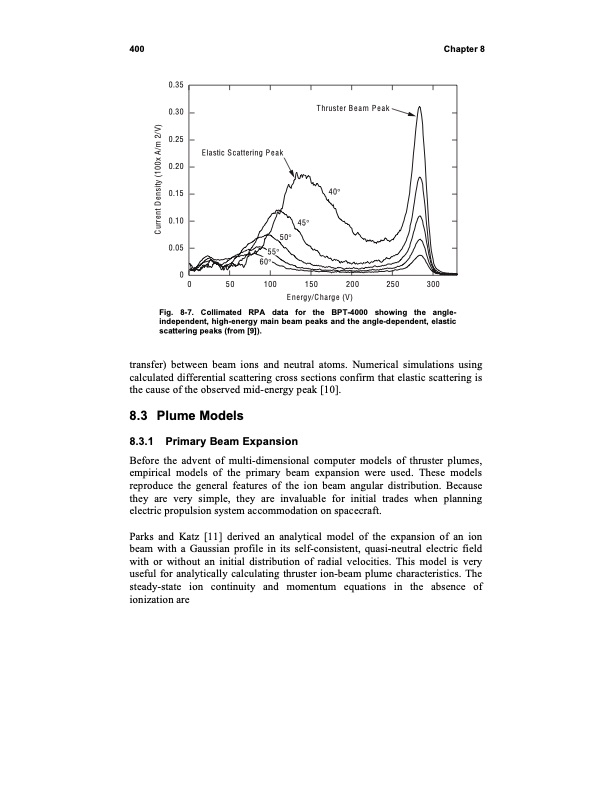

400 Chapter 8 0.35 0.30 0.25 Elastic Scattering Peak 0.20 Thruster Beam Peak 40° 45° 50° 55° Current Density (100x A/m 2/V) 0.15 0.10 0.05 0 Fig. 8-7. Collimated RPA data for the BPT-4000 showing the angle- independent, high-energy main beam peaks and the angle-dependent, elastic scattering peaks (from [9]). transfer) between beam ions and neutral atoms. Numerical simulations using calculated differential scattering cross sections confirm that elastic scattering is the cause of the observed mid-energy peak [10]. 8.3 Plume Models 8.3.1 Primary Beam Expansion Before the advent of multi-dimensional computer models of thruster plumes, empirical models of the primary beam expansion were used. These models reproduce the general features of the ion beam angular distribution. Because they are very simple, they are invaluable for initial trades when planning electric propulsion system accommodation on spacecraft. Parks and Katz [11] derived an analytical model of the expansion of an ion beam with a Gaussian profile in its self-consistent, quasi-neutral electric field with or without an initial distribution of radial velocities. This model is very useful for analytically calculating thruster ion-beam plume characteristics. The steady-state ion continuity and momentum equations in the absence of ionization are 60° 0 50 100 150 200 250 300 Energy/Charge (V)PDF Image | Fundamentals of Electric Propulsion: Ion and Hall Thrusters
