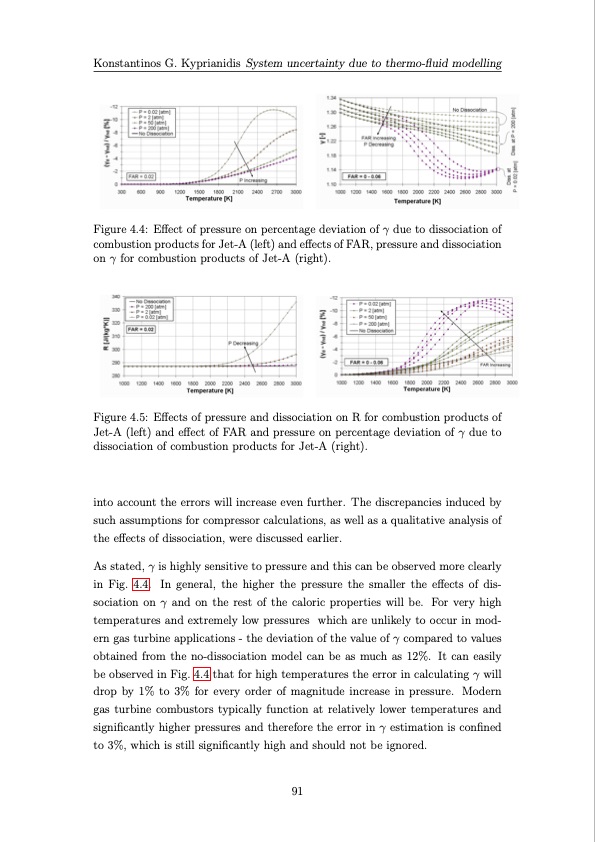

Konstantinos G. Kyprianidis System uncertainty due to thermo-fluid modelling Figure 4.4: Effect of pressure on percentage deviation of γ due to dissociation of combustion products for Jet-A (left) and effects of FAR, pressure and dissociation on γ for combustion products of Jet-A (right). Figure 4.5: Effects of pressure and dissociation on R for combustion products of Jet-A (left) and effect of FAR and pressure on percentage deviation of γ due to dissociation of combustion products for Jet-A (right). into account the errors will increase even further. The discrepancies induced by such assumptions for compressor calculations, as well as a qualitative analysis of the effects of dissociation, were discussed earlier. As stated, γ is highly sensitive to pressure and this can be observed more clearly in Fig. 4.4. In general, the higher the pressure the smaller the effects of dis- sociation on γ and on the rest of the caloric properties will be. For very high temperatures and extremely low pressures which are unlikely to occur in mod- ern gas turbine applications - the deviation of the value of γ compared to values obtained from the no-dissociation model can be as much as 12%. It can easily be observed in Fig. 4.4 that for high temperatures the error in calculating γ will drop by 1% to 3% for every order of magnitude increase in pressure. Modern gas turbine combustors typically function at relatively lower temperatures and significantly higher pressures and therefore the error in γ estimation is confined to 3%, which is still significantly high and should not be ignored. 91PDF Image | Multi-disciplinary conceptual design of future jet engine systems
