Text from PDF Page: 249

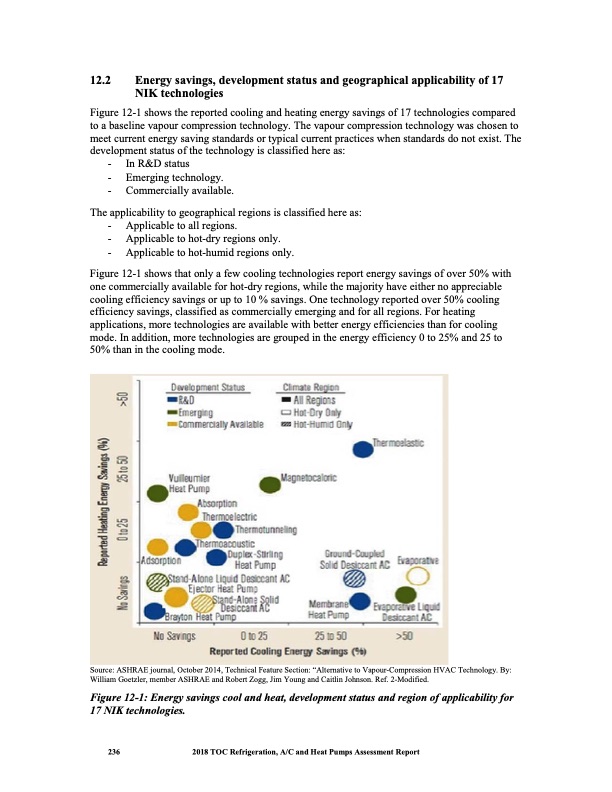

12.2 Energy savings, development status and geographical applicability of 17 NIK technologies Figure 12-1 shows the reported cooling and heating energy savings of 17 technologies compared to a baseline vapour compression technology. The vapour compression technology was chosen to meet current energy saving standards or typical current practices when standards do not exist. The development status of the technology is classified here as: - In R&D status - Emerging technology. - Commercially available. The applicability to geographical regions is classified here as: - Applicable to all regions. - Applicable to hot-dry regions only. - Applicable to hot-humid regions only. Figure 12-1 shows that only a few cooling technologies report energy savings of over 50% with one commercially available for hot-dry regions, while the majority have either no appreciable cooling efficiency savings or up to 10 % savings. One technology reported over 50% cooling efficiency savings, classified as commercially emerging and for all regions. For heating applications, more technologies are available with better energy efficiencies than for cooling mode. In addition, more technologies are grouped in the energy efficiency 0 to 25% and 25 to 50% than in the cooling mode. Source: ASHRAE journal, October 2014, Technical Feature Section: “Alternative to Vapour-Compression HVAC Technology. By: William Goetzler, member ASHRAE and Robert Zogg, Jim Young and Caitlin Johnson. Ref. 2-Modified. Figure 12-1: Energy savings cool and heat, development status and region of applicability for 17 NIK technologies. 236 2018 TOC Refrigeration, A/C and Heat Pumps Assessment ReportPDF Image | Heat Pumps Technical Options
