PDF Publication Title:
Text from PDF Page: 122

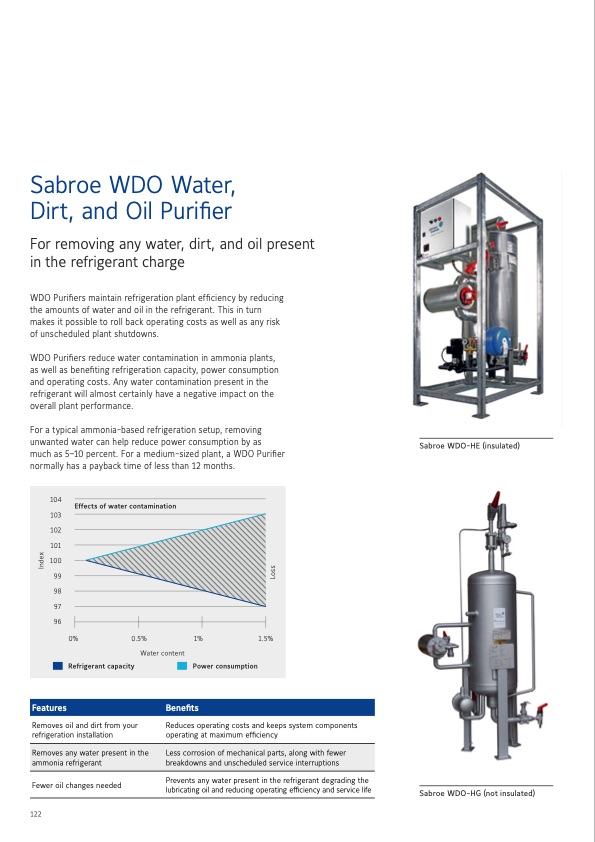

Sabroe WDO Water, Dirt, and Oil Purifier For removing any water, dirt, and oil present in the refrigerant charge WDO Purifiers maintain refrigeration plant efficiency by reducing the amounts of water and oil in the refrigerant This in turn makes it possible to roll back operating costs as well as any risk of unscheduled plant shutdowns WDO Purifiers reduce water contamination in ammonia plants, as well as benefiting refrigeration capacity, power consumption and operating costs Any water contamination present in the refrigerant will almost certainly have a negative impact on the overall plant performance For a typical ammonia-based refrigeration setup, removing unwanted water can help reduce power consumption by as much as 5–10 percent For a medium-sized plant, a WDO Purifier normally has a payback time of less than 12 months Sabroe WDO-HE (insulated) 104 103 102 101 100 99 98 97 96 Effects of water contamination 0% 0.5% Water content Refrigerant capacity 1% 1.5% Power consumption Features Benefits Removes oil and dirt from your refrigeration installation Fewer oil changes needed Reduces operating costs and keeps system components operating at maximum efficiency Prevents any water present in the refrigerant degrading the lubricating oil and reducing operating efficiency and service life Sabroe WDO-HG (not insulated) Removes any water present in the ammonia refrigerant Less corrosion of mechanical parts, along with fewer breakdowns and unscheduled service interruptions 122 Loss IndexPDF Image | Sabroe Products 2022
PDF Search Title:
Sabroe Products 2022Original File Name Searched:
Sabroe_product_catalogue_2022_EN_interactive.pdfDIY PDF Search: Google It | Yahoo | Bing
