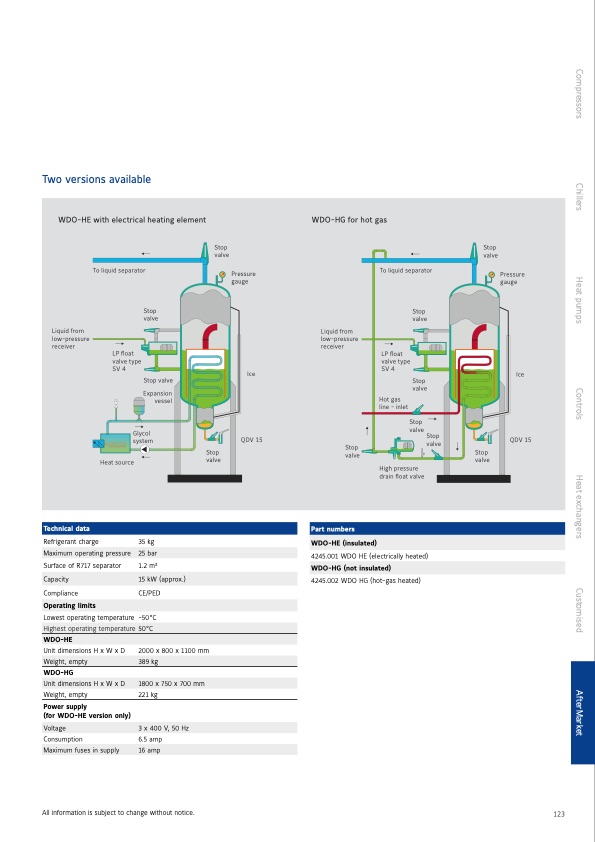

Two versions available WDO-HE with electrical heating element To liquid separator WDO-HG for hot gas Stop valve Stop valve Pressure gauge Ice QDV 15 To liquid separator Pressure gauge Ice QDV 15 Liquid from low-pressure receiver Stop valve LP float valve type SV 4 Stop valve Expansion vessel Liquid from low-pressure receiver Stop valve Stop valve Stop valve Hot gas line - inlet High pressure drain float valve LP float valve type SV 4 Glycol system Heat source Stop valve Stop Stop valve Stop valve valve Part numbers WDO-HE (insulated) Technical data Refrigerant charge Surface of R717 separator Compliance Lowest operating temperature Unit dimensions H x W x D WDO-HG Weight, empty Power supply (for WDO-HE version only) Consumption 35 kg 1 2 m2 CE/PED -50°C 2000 x 800 x 1100 mm 221 kg 6 5 amp 4245 001 WDO HE (electrically heated) WDO-HG (not insulated) 4245 002 WDO HG (hot-gas heated) Maximum operating pressure 25 bar Capacity 15 kW (approx ) Operating limits Highest operating temperature 50°C WDO-HE Weight, empty 389 kg Unit dimensions H x W x D 1800 x 750 x 700 mm Voltage 3 x 400 V, 50 Hz Maximum fuses in supply 16 amp All information is subject to change without notice 123 Compressors Chillers Heat pumps Controls Heat exchangers Customised AfterMarketPDF Image | Sabroe Products 2022
