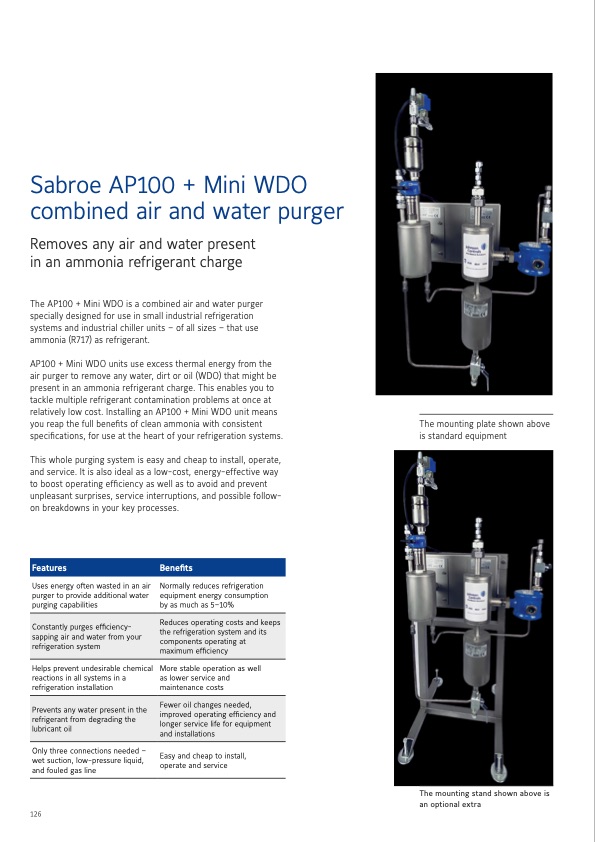

Sabroe AP100 + Mini WDO combined air and water purger Removes any air and water present in an ammonia refrigerant charge The AP100 + Mini WDO is a combined air and water purger specially designed for use in small industrial refrigeration systems and industrial chiller units – of all sizes – that use ammonia (R717) as refrigerant AP100 + Mini WDO units use excess thermal energy from the air purger to remove any water, dirt or oil (WDO) that might be present in an ammonia refrigerant charge This enables you to tackle multiple refrigerant contamination problems at once at relatively low cost Installing an AP100 + Mini WDO unit means you reap the full benefits of clean ammonia with consistent specifications, for use at the heart of your refrigeration systems This whole purging system is easy and cheap to install, operate, and service It is also ideal as a low-cost, energy-effective way to boost operating efficiency as well as to avoid and prevent unpleasant surprises, service interruptions, and possible follow- on breakdowns in your key processes The mounting plate shown above is standard equipment Features Benefits Uses energy often wasted in an air purger to provide additional water purging capabilities Helps prevent undesirable chemical reactions in all systems in a refrigeration installation Only three connections needed – wet suction, low-pressure liquid, and fouled gas line Normally reduces refrigeration equipment energy consumption by as much as 5–10% More stable operation as well as lower service and maintenance costs Easy and cheap to install, operate and service Constantly purges efficiency- sapping air and water from your refrigeration system Reduces operating costs and keeps the refrigeration system and its components operating at maximum efficiency Prevents any water present in the refrigerant from degrading the lubricant oil Fewer oil changes needed, improved operating efficiency and longer service life for equipment and installations 126 The mounting stand shown above is an optional extraPDF Image | Sabroe Products 2022
