PDF Publication Title:
Text from PDF Page: 008

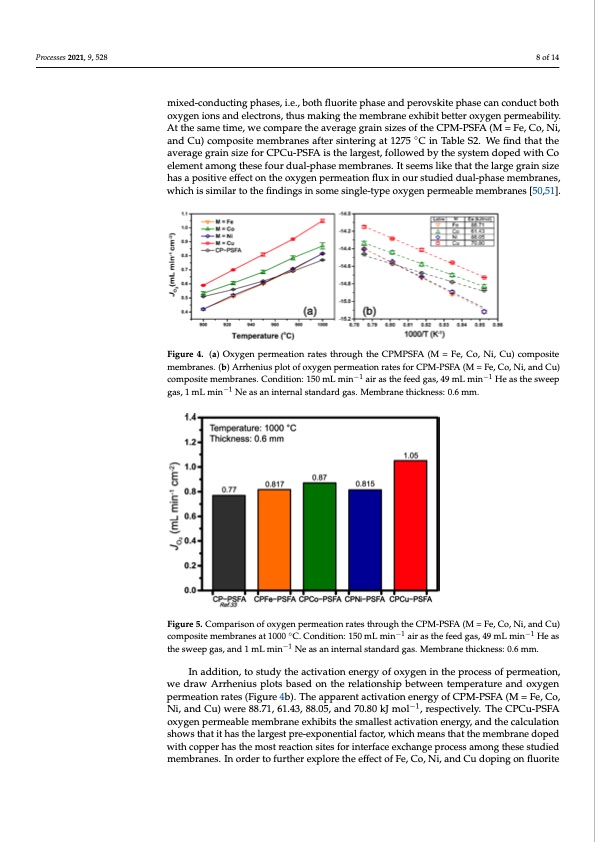

Processes 2021, 9, 528 h RT lnP σ σ J = ion e d(lnP) (2) o Considering that in dual-phase mixed-conducting OTM, electronic conductivit8yofis14 often much larger than ionic conductivity (σe ˃˃ σi) making the equation approximately to be as follows: O2 16F2L σ +σ lnP ion e l ln p'' mixed-conducting phases, i.e., both fluorRitTe phase Oand perovskite phase can conduct both oxygen ions and electrons, thus2 making the membrane exhibit2 better oxygen permeability. O 16F2lnp' i O J ⋅L=− 2σdlnp (3) O2 At the same time, we compare the average grain sizes of the CPM-PSFA (M = Fe, Co, Ni, The calculated ionic conductivity of CPM-PSFA (M = Fe, Co, Ni, Cu) are 0.0182, and Cu) composite membranes after sintering at 1275 C in Table S2. We find that the 0.0194, 0.0181, and 0.0243 S∙cm−1, respectively, which are higher than that of CP-PSFA average grain size for CPCu-PSFA is the largest, followed by the system doped with Co (0.0179 S∙cm−1). This indicates that the oxygen vacancies in CPM phase are enhanced due element among these four dual-phase membranes. It seems like that the large grain size tohathsealpoows-ivtiavlenefcfecotfotrnatnhseitoioxnygmeentapleormxyegaetinonioflnus,xthinusouexrhstibuidtinedg dbeutatle-rpihoansiecmcoenmdburcatnive-s, itwy.hich is similar to the findings in some single-type oxygen permeable membranes [50,51]. Figure 4. (a) Oxygen permeation rates through the CPMPSFA (M = Fe, Co, Ni, Cu) composite Figure 4. (a) Oxygen permeation rates through the CPMPSFA (M = Fe, Co, Ni, Cu) composite membranes. (b) Arrhenius plot of oxygen permeation rates for CPM-PSFA (M = Fe, Co, Ni, and Cu) membranes. (b) Arrhenius plot of oxygen permeation rates for CPM-PSFA (M = Fe, Co, Ni, and ◦ Processes 2021, 9, x FOR PEER REVIEW −1 −1 −1−1 9 of 14 Ccuo)mcopmospitoesmitembemrabnreasn.eCso.nCdointidointi:o1n5:01m50LmLinminairaiarsatshethfeefedegdags,a4s,94m9LmmLimninHHeeasasththeesweep −1 −1 swgaese,p1gmasL, m1 minL mNine asNaenaisnatenrninatlesrtnaanldsatardndgarsd. Mgaesm. Mbreamnebrtahnicektnheiscsk:n0e.s6sm: 0m.6.mm. Figure 5. Comparison of oxygen permeation rates through the CPM-PSFA (M = Fe, Co, Ni, and Figure 5. Comparison of oxygen permeation rates through the CPM-PSFA (M = Fe, Co, Ni, and Cu) C u ) c o m p o s i t e m e m b r a n e s a t 1 0◦ 0 0 ° C . C o n d i t i o n : 1 5 0 m L m− 1i n − 1 a i r a s t h e f e e d g a s , 4 9 m L m−i n1 − 1 H e composite membranes at 1000 C. Condition: 150 mL min air as the feed gas, 49 mL min He as −1 asthesweepgas,and1mLm−in1 Neasaninternalstandardgas.Membranethickness:0.6mm. the sweep gas, and 1 mL min Ne as an internal standard gas. Membrane thickness: 0.6 mm. Table 2 shows the comparison of oxygen permeation fluxes of different oxygen per- In addition, to study the activation energy of oxygen in the process of permeation, meable membranes. As shown in Table 2, we can see that our dual-phase membranes have we draw Arrhenius plots based on the relationship between temperature and oxygen lower oxygen permeability than that of co-based SrSc0.05Co0.95O3-δ single perovskite mem- permeation rates (Figure 4b). The apparent activation energy of CPM-PSFA (M = Fe, Co, −1 brane [53] but have near double higher [33,54] or comparable oxygen permeability com- Ni, and Cu) were 88.71, 61.43, 88.05, and 70.80 kJ mol , respectively. The CPCu-PSFA poaxryegdewniptheromtheearbdleumal-epmhbarsaenmeemxhbirbaintsesth[e55s,m56a]l.lTesotfaucrttihveartiboennecnhemrgayrk, atnhde pthoetecnatlicaullpartaiocn- tsichaolwapspthliactaitiohnasotfhOeTlaMrgseisntporxey--efxupeolnceonmtibaulsfaticotonr,,ownheiochftmheaimnsptohrattatnhtefamcetomrsbrisanwehdeothperd twheithOTcoMppcearnhoapsethraetemsotsatbrleyaicntiorinchsitceasrbfornindtieorxfaidceeaxtmchoasnpgheepreroscaetsshiagmhotnegmtphersaetustrued.iSeod fmare,mborsatnoesf.tIhneoprdrervitoufsurftihnedrinegxpslornetheesfifnegclteo-pfhFae,seCop,eNroi,vasnkidteC(uAdBoOp3i)ngmoenmflburaonreitse adopted alkali-earth elements in A or B site. This leads to the formation of carbonates in CO2 rich atmosphere at high temperature and the stop of oxygen permeation [57]. Thus, it is necessary to check the stability for our CPM-PSFA membranes under low oxygen atmosphere. Figure 6a,b shows the in situ XRD patterns for the CPCu-PSFA and CPCo- PSFA materials from 30 to 1000 °C. In situ XRD patterns show that there is no carbonates or other impurity phase that can be observed in the CPCu-PSFA and CPCo-PSFA compo-PDF Image | CO2-Tolerant Oxygen Permeation Membranes
PDF Search Title:
CO2-Tolerant Oxygen Permeation MembranesOriginal File Name Searched:
processes-09-00528-v2.pdfDIY PDF Search: Google It | Yahoo | Bing
NFT (Non Fungible Token): Buy our tech, design, development or system NFT and become part of our tech NFT network... More Info
IT XR Project Redstone NFT Available for Sale: NFT for high tech turbine design with one part 3D printed counter-rotating energy turbine. Be part of the future with this NFT. Can be bought and sold but only one design NFT exists. Royalties go to the developer (Infinity) to keep enhancing design and applications... More Info
Infinity Turbine IT XR Project Redstone Design: NFT for sale... NFT for high tech turbine design with one part 3D printed counter-rotating energy turbine. Includes all rights to this turbine design, including license for Fluid Handling Block I and II for the turbine assembly and housing. The NFT includes the blueprints (cad/cam), revenue streams, and all future development of the IT XR Project Redstone... More Info
Infinity Turbine ROT Radial Outflow Turbine 24 Design and Worldwide Rights: NFT for sale... NFT for the ROT 24 energy turbine. Be part of the future with this NFT. This design can be bought and sold but only one design NFT exists. You may manufacture the unit, or get the revenues from its sale from Infinity Turbine. Royalties go to the developer (Infinity) to keep enhancing design and applications... More Info
Infinity Supercritical CO2 10 Liter Extractor Design and Worldwide Rights: The Infinity Supercritical 10L CO2 extractor is for botanical oil extraction, which is rich in terpenes and can produce shelf ready full spectrum oil. With over 5 years of development, this industry leader mature extractor machine has been sold since 2015 and is part of many profitable businesses. The process can also be used for electrowinning, e-waste recycling, and lithium battery recycling, gold mining electronic wastes, precious metals. CO2 can also be used in a reverse fuel cell with nafion to make a gas-to-liquids fuel, such as methanol, ethanol and butanol or ethylene. Supercritical CO2 has also been used for treating nafion to make it more effective catalyst. This NFT is for the purchase of worldwide rights which includes the design. More Info
NFT (Non Fungible Token): Buy our tech, design, development or system NFT and become part of our tech NFT network... More Info
Infinity Turbine Products: Special for this month, any plans are $10,000 for complete Cad/Cam blueprints. License is for one build. Try before you buy a production license. May pay by Bitcoin or other Crypto. Products Page... More Info
| CONTACT TEL: 608-238-6001 Email: greg@infinityturbine.com | RSS | AMP |
