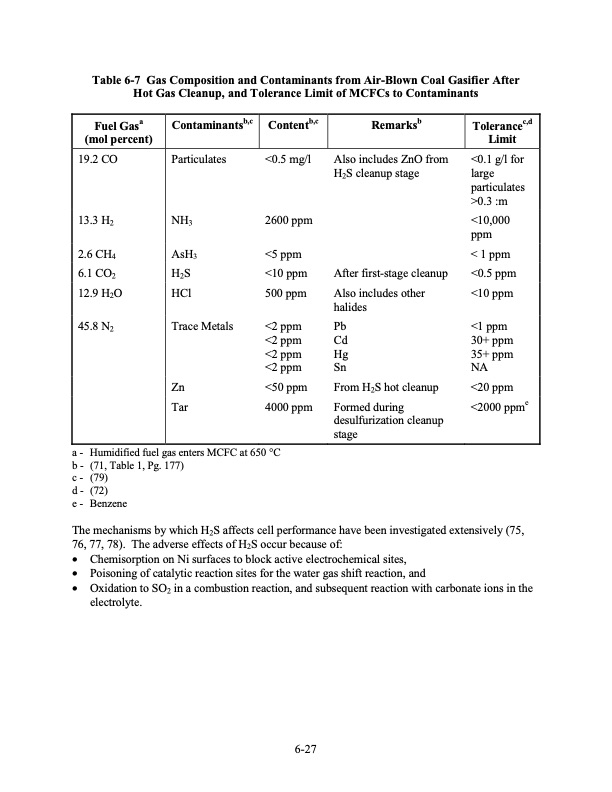

Table 6-7 Gas Composition and Contaminants from Air-Blown Coal Gasifier After Hot Gas Cleanup, and Tolerance Limit of MCFCs to Contaminants Fuel Gasa (mol percent) 19.2 CO 13.3 H2 2.6 CH4 6.1 CO2 12.9 H2O 45.8 N2 Contaminantsb,c Particulates NH3 AsH3 H2S HCl Trace Metals Zn Tar Contentb,c <0.5 mg/l 2600 ppm <5 ppm <10 ppm 500 ppm <2 ppm <2 ppm <2 ppm <2 ppm <50 ppm 4000 ppm Remarksb Also includes ZnO from H2S cleanup stage After first-stage cleanup Also includes other halides Pb Cd Hg Sn From H2S hot cleanup Formed during desulfurization cleanup stage Tolerancec,d Limit <0.1 g/l for large particulates >0.3 :m <10,000 ppm < 1 ppm <0.5 ppm <10 ppm <1 ppm 30+ ppm 35+ ppm NA <20 ppm <2000 ppme a- HumidifiedfuelgasentersMCFCat650°C b- (71,Table1,Pg.177) c- (79) d- (72) e- Benzene The mechanisms by which H2S affects cell performance have been investigated extensively (75, 76, 77, 78). The adverse effects of H2S occur because of: • Chemisorption on Ni surfaces to block active electrochemical sites, • Poisoning of catalytic reaction sites for the water gas shift reaction, and • Oxidation to SO2 in a combustion reaction, and subsequent reaction with carbonate ions in the electrolyte. 6-27PDF Image | Fuel Cell Handbook (Seventh Edition)
