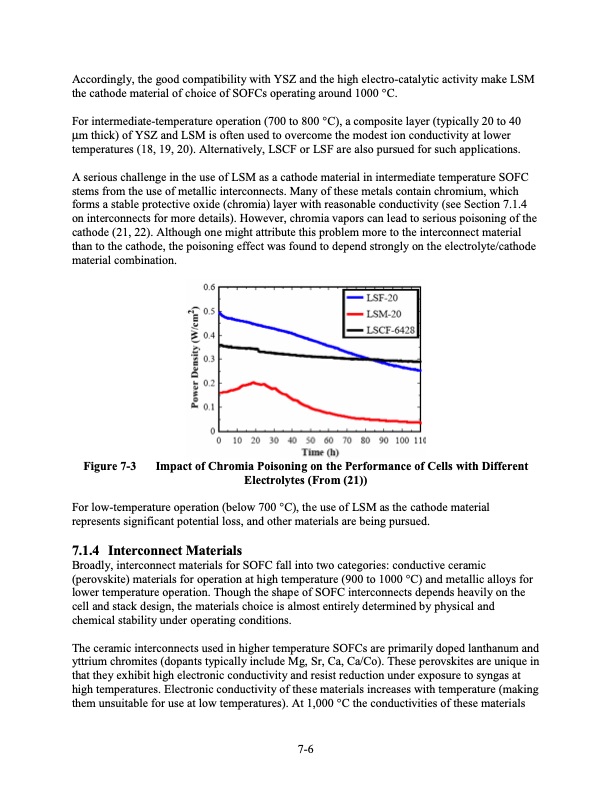

Accordingly, the good compatibility with YSZ and the high electro-catalytic activity make LSM the cathode material of choice of SOFCs operating around 1000 °C. For intermediate-temperature operation (700 to 800 °C), a composite layer (typically 20 to 40 μm thick) of YSZ and LSM is often used to overcome the modest ion conductivity at lower temperatures (18, 19, 20). Alternatively, LSCF or LSF are also pursued for such applications. A serious challenge in the use of LSM as a cathode material in intermediate temperature SOFC stems from the use of metallic interconnects. Many of these metals contain chromium, which forms a stable protective oxide (chromia) layer with reasonable conductivity (see Section 7.1.4 on interconnects for more details). However, chromia vapors can lead to serious poisoning of the cathode (21, 22). Although one might attribute this problem more to the interconnect material than to the cathode, the poisoning effect was found to depend strongly on the electrolyte/cathode material combination. Figure 7-3 Impact of Chromia Poisoning on the Performance of Cells with Different Electrolytes (From (21)) For low-temperature operation (below 700 °C), the use of LSM as the cathode material represents significant potential loss, and other materials are being pursued. 7.1.4 InterconnectMaterials Broadly, interconnect materials for SOFC fall into two categories: conductive ceramic (perovskite) materials for operation at high temperature (900 to 1000 °C) and metallic alloys for lower temperature operation. Though the shape of SOFC interconnects depends heavily on the cell and stack design, the materials choice is almost entirely determined by physical and chemical stability under operating conditions. The ceramic interconnects used in higher temperature SOFCs are primarily doped lanthanum and yttrium chromites (dopants typically include Mg, Sr, Ca, Ca/Co). These perovskites are unique in that they exhibit high electronic conductivity and resist reduction under exposure to syngas at high temperatures. Electronic conductivity of these materials increases with temperature (making them unsuitable for use at low temperatures). At 1,000 °C the conductivities of these materials 7-6PDF Image | Fuel Cell Handbook (Seventh Edition)
