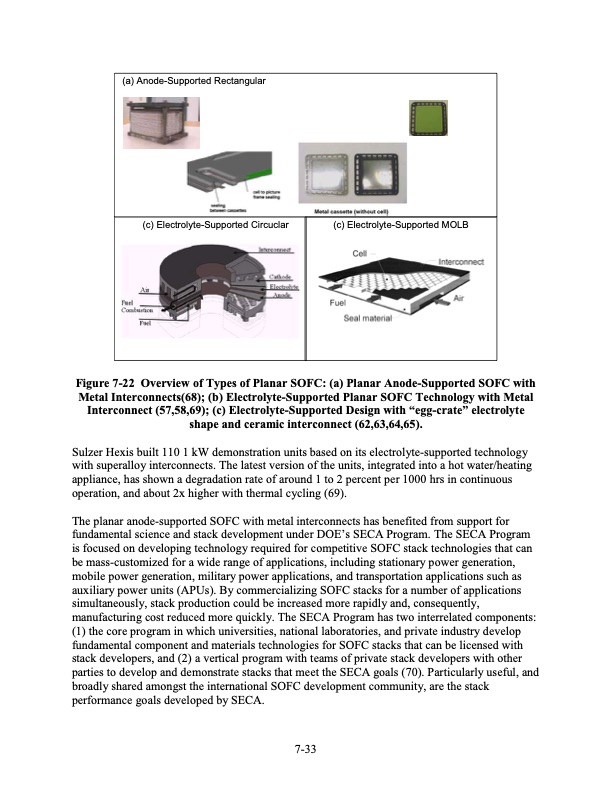

(a) Anode-Supported Rectangular (c) Electrolyte-Supported Circuclar (c) Electrolyte-Supported MOLB Figure 7-22 Overview of Types of Planar SOFC: (a) Planar Anode-Supported SOFC with Metal Interconnects(68); (b) Electrolyte-Supported Planar SOFC Technology with Metal Interconnect (57,58,69); (c) Electrolyte-Supported Design with “egg-crate” electrolyte shape and ceramic interconnect (62,63,64,65). Sulzer Hexis built 110 1 kW demonstration units based on its electrolyte-supported technology with superalloy interconnects. The latest version of the units, integrated into a hot water/heating appliance, has shown a degradation rate of around 1 to 2 percent per 1000 hrs in continuous operation, and about 2x higher with thermal cycling (69). The planar anode-supported SOFC with metal interconnects has benefited from support for fundamental science and stack development under DOE’s SECA Program. The SECA Program is focused on developing technology required for competitive SOFC stack technologies that can be mass-customized for a wide range of applications, including stationary power generation, mobile power generation, military power applications, and transportation applications such as auxiliary power units (APUs). By commercializing SOFC stacks for a number of applications simultaneously, stack production could be increased more rapidly and, consequently, manufacturing cost reduced more quickly. The SECA Program has two interrelated components: (1) the core program in which universities, national laboratories, and private industry develop fundamental component and materials technologies for SOFC stacks that can be licensed with stack developers, and (2) a vertical program with teams of private stack developers with other parties to develop and demonstrate stacks that meet the SECA goals (70). Particularly useful, and broadly shared amongst the international SOFC development community, are the stack performance goals developed by SECA. 7-33PDF Image | Fuel Cell Handbook (Seventh Edition)
