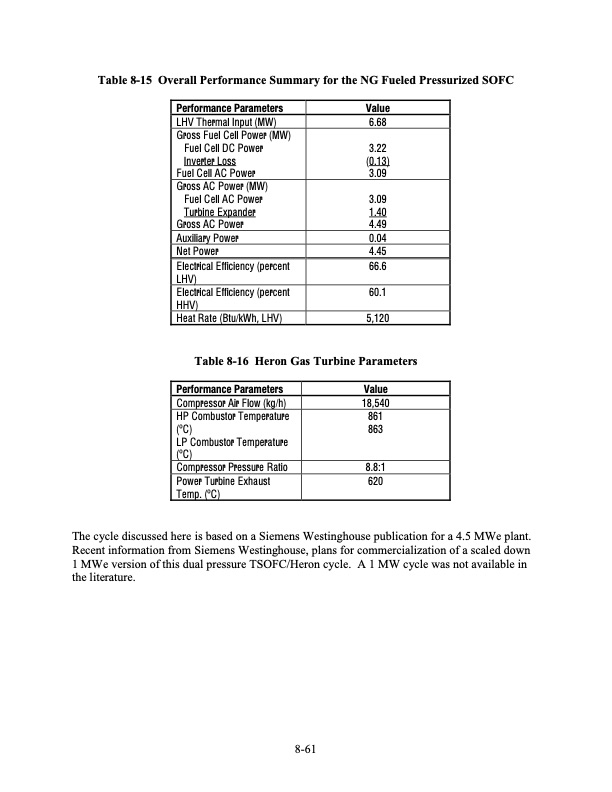

Table 8-15 Overall Performance Summary for the NG Fueled Pressurized SOFC Performance Parameters Value LHV Thermal Input (MW) 6.68 Auxiliary Power 0.04 Net Power 4.45 Electrical Efficiency (percent 66.6 LHV) Electrical Efficiency (percent 60.1 HHV) Gross Fuel Cell Power (MW) Fuel Cell DC Power Inverter Loss Fuel Cell AC Power 3.22 (0.13) 3.09 Gross AC Power (MW) Fuel Cell AC Power Turbine Expander Gross AC Power 3.09 1.40 4.49 Heat Rate (Btu/kWh, LHV) 5,120 Table 8-16 Heron Gas Turbine Parameters Performance Parameters Compressor Air Flow (kg/h) Compressor Pressure Ratio Power Turbine Exhaust Temp. (oC) Value 18,540 8.8:1 620 HP Combustor Temperature (oC) LP Combustor Temperature (oC) 861 863 The cycle discussed here is based on a Siemens Westinghouse publication for a 4.5 MWe plant. Recent information from Siemens Westinghouse, plans for commercialization of a scaled down 1 MWe version of this dual pressure TSOFC/Heron cycle. A 1 MW cycle was not available in the literature. 8-61PDF Image | Fuel Cell Handbook (Seventh Edition)
