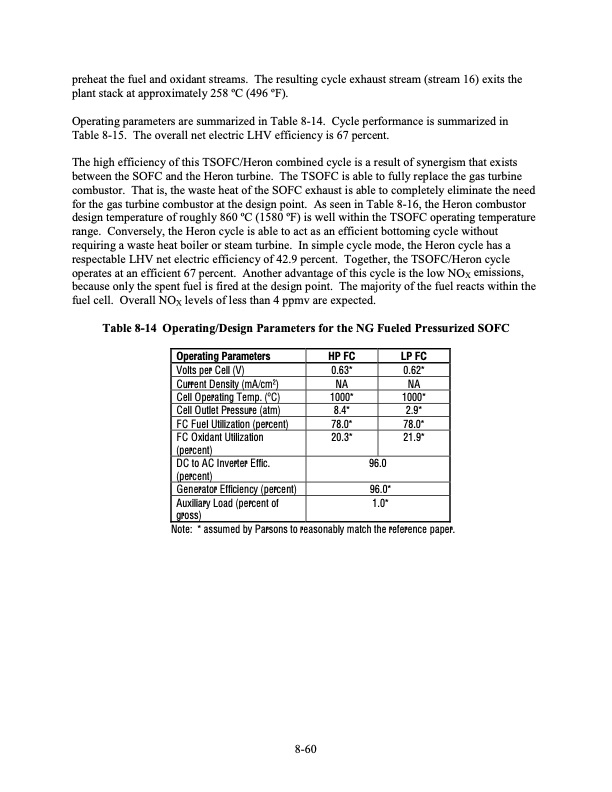

preheat the fuel and oxidant streams. The resulting cycle exhaust stream (stream 16) exits the plant stack at approximately 258 oC (496 oF). Operating parameters are summarized in Table 8-14. Cycle performance is summarized in Table 8-15. The overall net electric LHV efficiency is 67 percent. The high efficiency of this TSOFC/Heron combined cycle is a result of synergism that exists between the SOFC and the Heron turbine. The TSOFC is able to fully replace the gas turbine combustor. That is, the waste heat of the SOFC exhaust is able to completely eliminate the need for the gas turbine combustor at the design point. As seen in Table 8-16, the Heron combustor design temperature of roughly 860 oC (1580 oF) is well within the TSOFC operating temperature range. Conversely, the Heron cycle is able to act as an efficient bottoming cycle without requiring a waste heat boiler or steam turbine. In simple cycle mode, the Heron cycle has a respectable LHV net electric efficiency of 42.9 percent. Together, the TSOFC/Heron cycle operates at an efficient 67 percent. Another advantage of this cycle is the low NOX emissions, because only the spent fuel is fired at the design point. The majority of the fuel reacts within the fuel cell. Overall NOX levels of less than 4 ppmv are expected. Table 8-14 Operating/Design Parameters for the NG Fueled Pressurized SOFC Operating Parameters Volts per Cell (V) Current Density (mA/cm2) Cell Operating Temp. (oC) Cell Outlet Pressure (atm) FC Fuel Utilization (percent) FC Oxidant Utilization (percent) DC to AC Inverter Effic. (percent) Generator Efficiency (percent) Auxiliary Load (percent of gross) HP FC 0.63* NA 1000* 8.4* 78.0* 20.3* LP FC 0.62* NA 1000* 2.9* 78.0* 21.9* 96.0 96.0* 1.0* Note: * assumed by Parsons to reasonably match the reference paper. 8-60PDF Image | Fuel Cell Handbook (Seventh Edition)
