Text from PDF Page: 090

𝑗 π‘™π‘–π‘š = π‘™π‘–π‘šπ‘–π‘‘π‘–π‘›π‘” π‘π‘’π‘Ÿπ‘Ÿπ‘’π‘›π‘‘ 𝑑𝑒𝑛𝑠𝑖𝑑𝑦 ( π‘šπ΄ ) π‘π‘š2 Method and characterisation 3.2.7.1 Methanol permeability in DMFC The methanol crossover is obtained by using linear sweep voltammetry method. The data obtained from the LSV test (current density vs volt) can be used to evaluate the methanol permeability. The product of diffusion coefficient and the concentration of methanol called methanol permeability [161]. Methanol crossover takes place in the fuel cell due to the electro-osmotic drag mode (Fdrag) (the flow of methanol from anode to cathode by an applied potential) and the diffusion by methanol concentration gradient (Fdiff.). Therefore the total diffusional net flux (Fnet) of methanol across the membrane (from anode to cathode) is given by [162]: Fnet = Fdiff.- Fdrag (3.6) The ratio of flux by diffusion (Fdiff) to the flux by osmosis drag (Fdrag) is the drag coefficient kdl. On the base of limiting current density (jlim), the methanol crossover can be determined by Faraday’s law. Therefore, 𝐹𝑛𝑒𝑑 = π‘—π‘™π‘–π‘š, and 𝑛𝐹 𝐹𝑑𝑖𝑓𝑓. = π·πΆπ‘š, πΏπ‘š π‘—π‘™π‘–π‘š =(1βˆ’π‘˜π‘‘π‘™)βˆ—π·πΆπ‘š therefore, equation (3.6) becomes 𝑛𝐹 πΏπ‘š (3.7) 𝐹 = πΉπ‘Žπ‘Ÿπ‘Žπ‘‘π‘Žπ‘¦ π‘π‘œπ‘›π‘ π‘‘π‘Žπ‘›π‘‘ = 96485 𝐢/π‘šπ‘œπ‘™ 𝑛 = π‘›π‘’π‘šπ‘π‘’π‘Ÿ π‘œπ‘“ π‘’π‘™π‘’π‘π‘‘π‘Ÿπ‘œπ‘›π‘  = 6 π‘˜π‘‘π‘™ = π‘‘π‘Ÿπ‘Žπ‘” π‘π‘œπ‘’π‘“π‘“π‘–π‘π‘–π‘’π‘›π‘‘ 0.8829 𝐷 = π‘‘π‘–π‘“π‘“π‘’π‘ π‘–π‘œπ‘› π‘π‘œπ‘’π‘“π‘“π‘–π‘π‘–π‘’π‘›π‘‘ π‘π‘š2/𝑠 πΏπ‘š = π‘šπ‘’π‘šπ‘π‘Ÿπ‘Žπ‘›π‘’ 𝑑hπ‘–π‘π‘˜π‘›π‘’π‘ π‘  = 0.0183 π‘π‘š πΆπ‘š = 𝑀𝑒𝑑hπ‘Žπ‘›π‘œπ‘™ π‘π‘œπ‘›π‘π‘’π‘›π‘‘π‘Ÿπ‘Žπ‘‘π‘–π‘œπ‘› (π‘šπ‘œπ‘™) , 𝑀hπ‘’π‘Ÿπ‘’ 1𝐿 = 1000π‘π‘š3 π‘π‘š3 Multiplying the diffusion coefficient (D) by the partition coefficient (K) gives the methanol permeability [162]. Therefore, rearranging equation 3.7 Sirhan AL-Batty Page 90

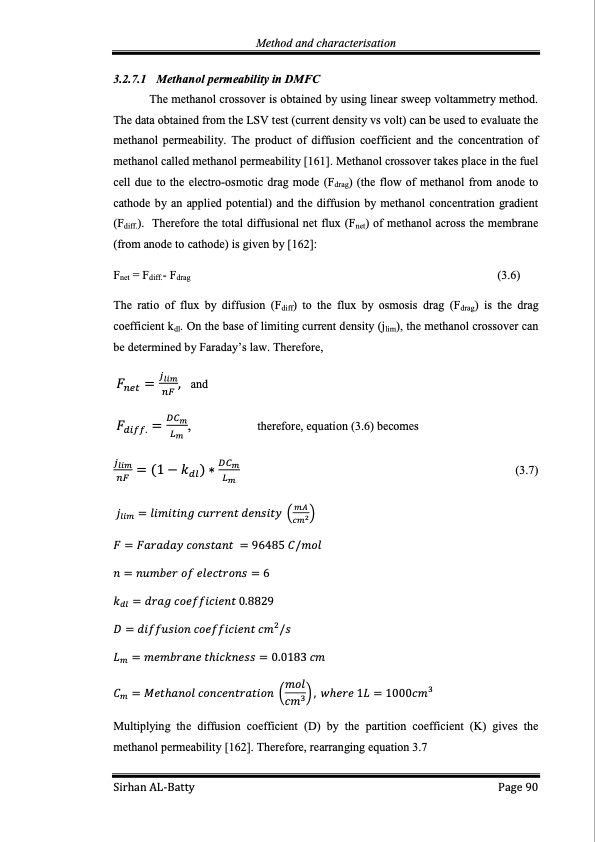

PDF Image | Membrane Electrode Assembly Modification by Zeolite and Graphene Oxide

membrane-electrode-assembly-modification-by-zeolite-and-grap-090
