Text from PDF Page: 115

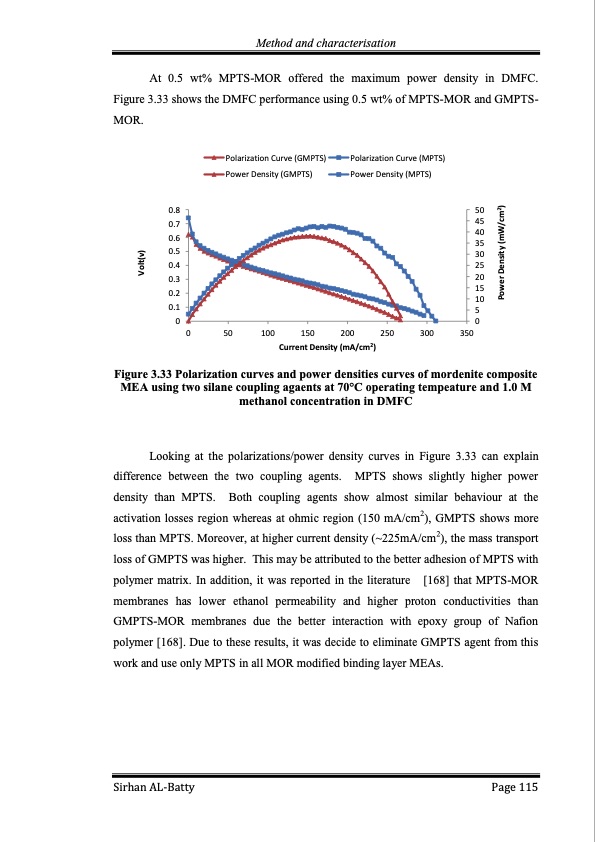

Method and characterisation At 0.5 wt% MPTS-MOR offered the maximum power density in DMFC. Figure 3.33 shows the DMFC performance using 0.5 wt% of MPTS-MOR and GMPTS- MOR. 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 50 45 40 35 30 25 20 15 10 5 Polarization Curve (GMPTS) Power Density (GMPTS) Polarization Curve (MPTS) Power Density (MPTS) 00 0 50 100 150 200 250 300 350 Current Density (mA/cm2) Figure 3.33 Polarization curves and power densities curves of mordenite composite MEA using two silane coupling agaents at 70°C operating tempeature and 1.0 M methanol concentration in DMFC Looking at the polarizations/power density curves in Figure 3.33 can explain difference between the two coupling agents. MPTS shows slightly higher power density than MPTS. Both coupling agents show almost similar behaviour at the activation losses region whereas at ohmic region (150 mA/cm2), GMPTS shows more loss than MPTS. Moreover, at higher current density (~225mA/cm2), the mass transport loss of GMPTS was higher. This may be attributed to the better adhesion of MPTS with polymer matrix. In addition, it was reported in the literature [168] that MPTS-MOR membranes has lower ethanol permeability and higher proton conductivities than GMPTS-MOR membranes due the better interaction with epoxy group of Nafion polymer [168]. Due to these results, it was decide to eliminate GMPTS agent from this work and use only MPTS in all MOR modified binding layer MEAs. Sirhan AL-Batty Page 115 Volt(v) Power Density (mW/cm2)PDF Image | Membrane Electrode Assembly Modification by Zeolite and Graphene Oxide
