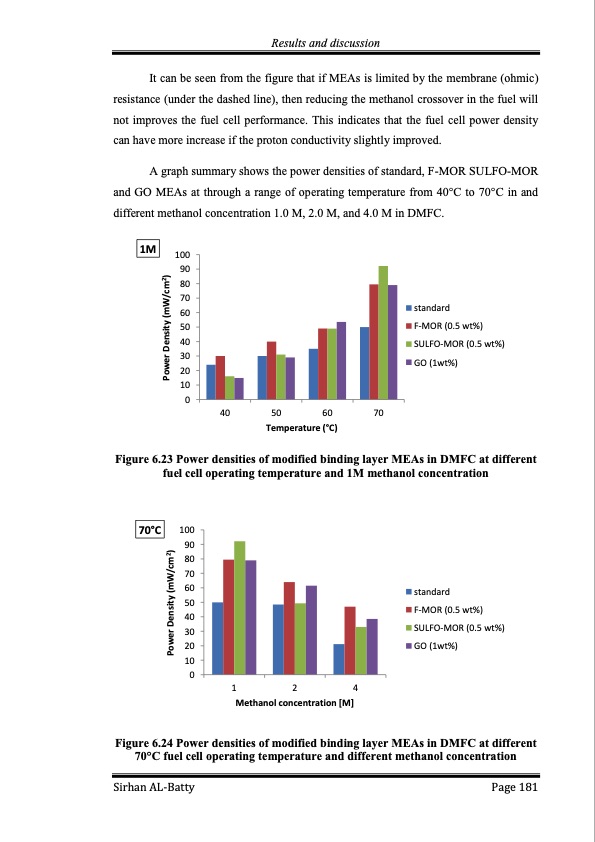

Results and discussion It can be seen from the figure that if MEAs is limited by the membrane (ohmic) resistance (under the dashed line), then reducing the methanol crossover in the fuel will not improves the fuel cell performance. This indicates that the fuel cell power density can have more increase if the proton conductivity slightly improved. A graph summary shows the power densities of standard, F-MOR SULFO-MOR and GO MEAs at through a range of operating temperature from 40°C to 70°C in and different methanol concentration 1.0 M, 2.0 M, and 4.0 M in DMFC. 1M 100 90 80 70 60 50 40 30 20 10 0 40 50 60 70 Temperature (°C) standard F-MOR (0.5 wt%) SULFO-MOR (0.5 wt%) GO (1wt%) Figure 6.23 Power densities of modified binding layer MEAs in DMFC at different fuel cell operating temperature and 1M methanol concentration 70°C 100 90 80 70 60 50 40 30 20 10 0 standard F-MOR (0.5 wt%) SULFO-MOR (0.5 wt%) GO (1wt%) 124 Methanol concentration [M] Figure 6.24 Power densities of modified binding layer MEAs in DMFC at different 70°C fuel cell operating temperature and different methanol concentration Sirhan AL-Batty Page 181 Power Density (mW/cm2) Power Density (mW/cm2)PDF Image | Membrane Electrode Assembly Modification by Zeolite and Graphene Oxide
