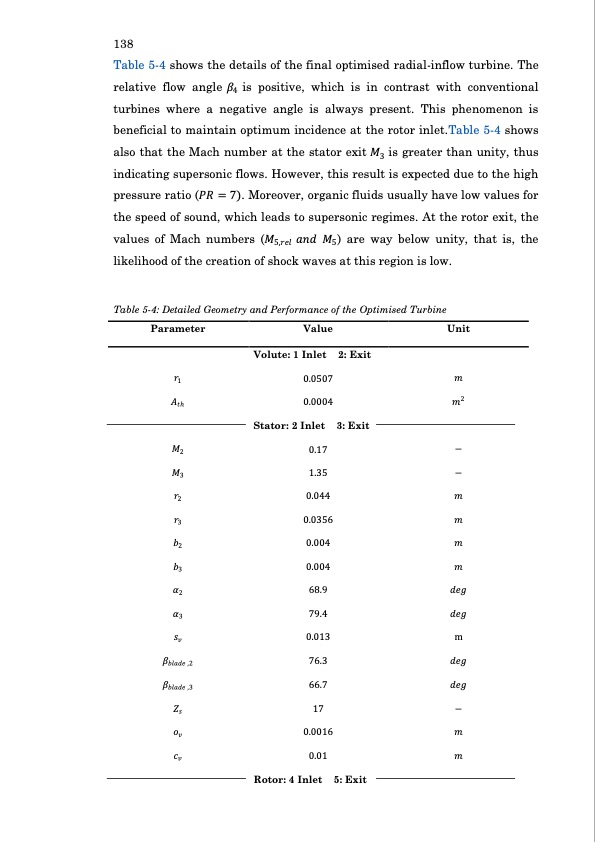

138 Table 5-4 shows the details of the final optimised radial-inflow turbine. The relative flow angle 𝛽4 is positive, which is in contrast with conventional turbines where a negative angle is always present. This phenomenon is beneficial to maintain optimum incidence at the rotor inlet.Table 5-4 shows also that the Mach number at the stator exit 𝑀3 is greater than unity, thus indicating supersonic flows. However, this result is expected due to the high pressure ratio (𝑃𝑅 = 7). Moreover, organic fluids usually have low values for the speed of sound, which leads to supersonic regimes. At the rotor exit, the values of Mach numbers (𝑀5,𝑟𝑒𝑙 𝑎𝑛𝑑 𝑀5) are way below unity, that is, the likelihood of the creation of shock waves at this region is low. Table 5-4: Detailed Geometry and Performance of the Optimised Turbine Parameter Value Unit 𝑚 𝑚2 − − 𝑚 𝑚 𝑚 𝑚 𝑑𝑒𝑔 𝑑𝑒𝑔 m 𝑑𝑒𝑔 𝑑𝑒𝑔 Volute: 1 Inlet 𝑟 0.0507 1 𝐴𝑡 0.0004 Stator: 2 Inlet 𝑀2 0.17 𝑀3 1.35 𝑟 0.044 2 𝑟 0.0356 3 𝑏2 0.004 𝑏3 0.004 𝛼2 68.9 𝛼3 79.4 𝑠𝑣 0.013 𝛽𝑏𝑙𝑎𝑑𝑒 ,2 76.3 𝛽𝑏𝑙𝑎𝑑𝑒 ,3 66.7 2: Exit 3: Exit 𝑍𝑠 17 − 𝑜𝑣 0.0016 𝑚 𝑐𝑣 0.01 𝑚 Rotor: 4 Inlet 5: ExitPDF Image | Automotive Radial Turbine Expander Design WHR
