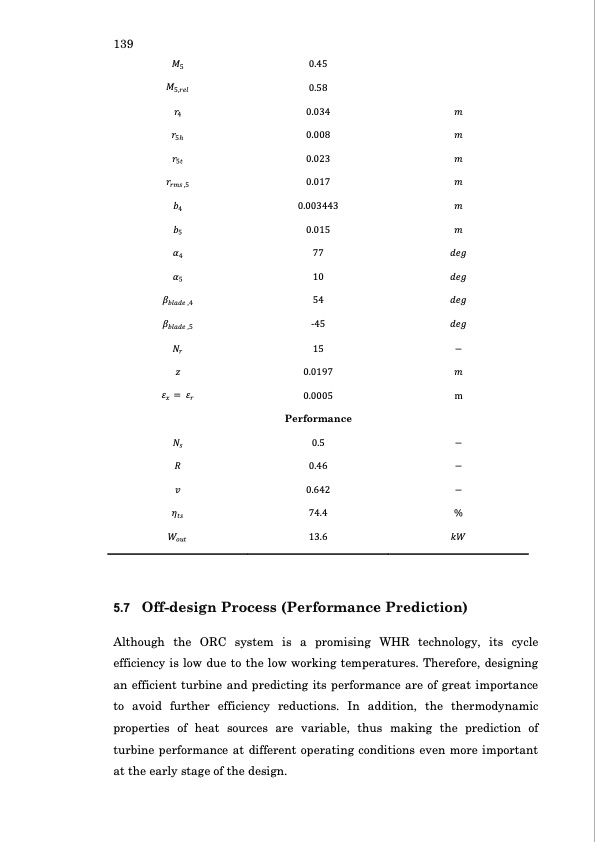

Text from PDF Page: 158
139 𝑀5 0.45 𝑀5,𝑟𝑒𝑙 0.58 𝑟 4 𝑟 5 𝑟 5𝑡 𝑟 𝑟𝑚𝑠 ,5 0.034 𝑚 0.008 𝑚 0.023 𝑚 0.017 𝑚 77 𝑑𝑒𝑔 10 𝑑𝑒𝑔 54 𝑑𝑒𝑔 -45 𝑑𝑒𝑔 0.003443 𝑚 0.015 𝑚 𝑏4 𝑏5 𝛼4 𝛼5 𝛽𝑏𝑙𝑎𝑑𝑒 ,4 𝛽𝑏𝑙𝑎𝑑𝑒 ,5 𝑁𝑟 15 − 𝑧 0.0197 𝑚 𝜀𝑥 = 𝜀𝑟 0.0005 m Performance 𝑁𝑠 0.5 − 𝑅 0.46 − 𝑣 𝜂𝑡𝑠 𝑊 𝑜𝑢𝑡 0.642 − 74.4 % 13.6 𝑘𝑊 5.7 Off-design Process (Performance Prediction) Although the ORC system is a promising WHR technology, its cycle efficiency is low due to the low working temperatures. Therefore, designing an efficient turbine and predicting its performance are of great importance to avoid further efficiency reductions. In addition, the thermodynamic properties of heat sources are variable, thus making the prediction of turbine performance at different operating conditions even more important at the early stage of the design.PDF Image | Automotive Radial Turbine Expander Design WHR
