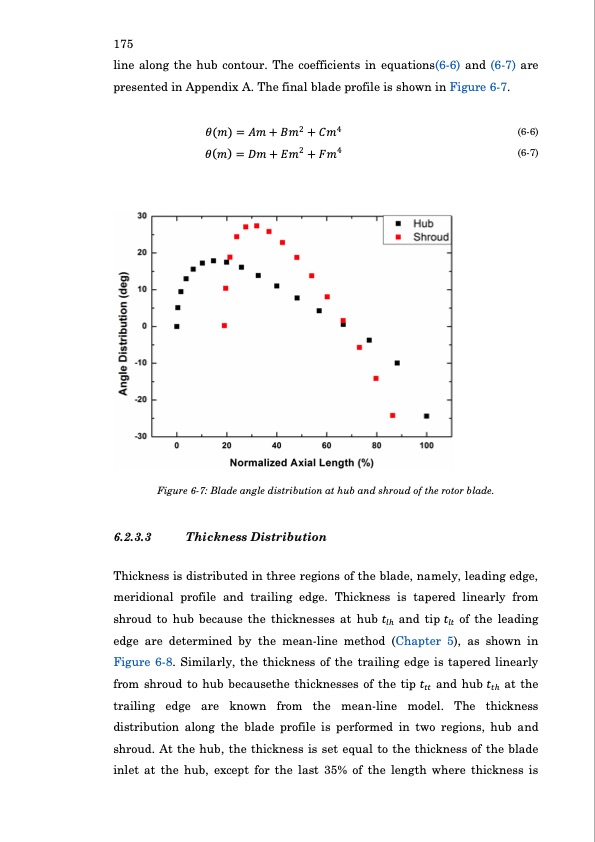

175 line along the hub contour. The coefficients in equations(6-6) and (6-7) are presented in Appendix A. The final blade profile is shown in Figure β6-7. ππ =π΄π+π΅π2+πΆπ4 ππ =π·π+πΈπ2+πΉπ4 (β6-6) (β6-7) 6.2.3.3 Figure β6-7: Blade angle distribution at hub and shroud of the rotor blade. Thickness Distribution Thickness is distributed in three regions of the blade, namely, leading edge, meridional profile and trailing edge. Thickness is tapered linearly from shroud to hub because the thicknesses at hub π‘ππ and tip π‘ππ‘ of the leading edge are determined by the mean-line method (βChapter 5), as shown in Figure β6-8. Similarly, the thickness of the trailing edge is tapered linearly from shroud to hub becausethe thicknesses of the tip π‘π‘π‘ and hub π‘π‘π at the trailing edge are known from the mean-line model. The thickness distribution along the blade profile is performed in two regions, hub and shroud. At the hub, the thickness is set equal to the thickness of the blade inlet at the hub, except for the last 35% of the length where thickness isPDF Image | Automotive Radial Turbine Expander Design WHR
