Text from PDF Page: 195

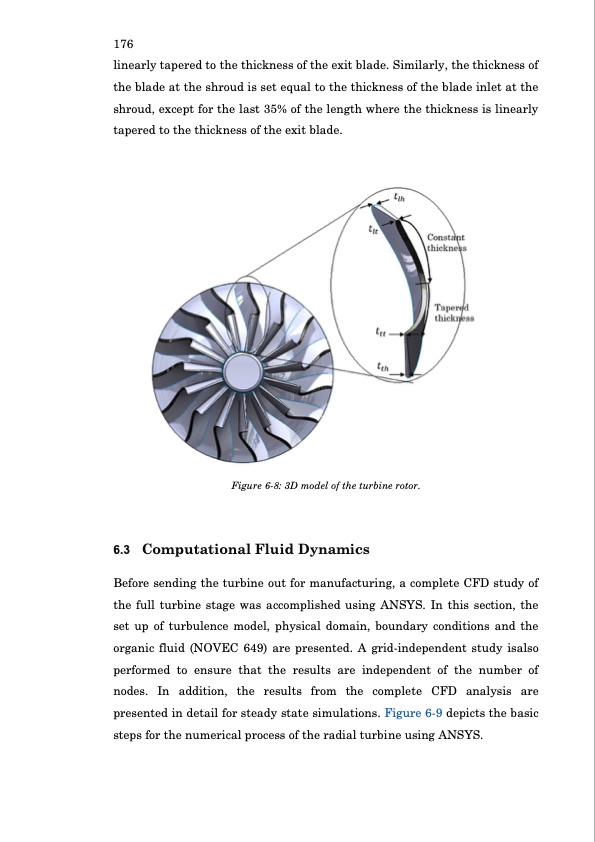

176 linearly tapered to the thickness of the exit blade. Similarly, the thickness of the blade at the shroud is set equal to the thickness of the blade inlet at the shroud, except for the last 35% of the length where the thickness is linearly tapered to the thickness of the exit blade. Figure 6-8: 3D model of the turbine rotor. 6.3 Computational Fluid Dynamics Before sending the turbine out for manufacturing, a complete CFD study of the full turbine stage was accomplished using ANSYS. In this section, the set up of turbulence model, physical domain, boundary conditions and the organic fluid (NOVEC 649) are presented. A grid-independent study isalso performed to ensure that the results are independent of the number of nodes. In addition, the results from the complete CFD analysis are presented in detail for steady state simulations. Figure 6-9 depicts the basic steps for the numerical process of the radial turbine using ANSYS.PDF Image | Automotive Radial Turbine Expander Design WHR
