Text from PDF Page: 077

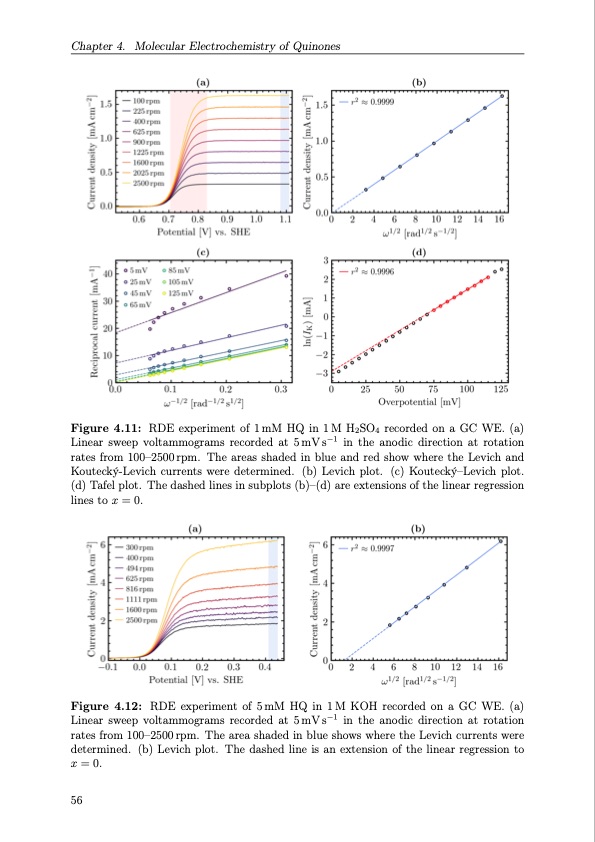

Chapter 4. Molecular Electrochemistry of Quinones Figure 4.11: RDE experiment of 1mM HQ in 1M H2SO4 recorded on a GC WE. (a) Linear sweep voltammograms recorded at 5mVs−1 in the anodic direction at rotation rates from 100–2500 rpm. The areas shaded in blue and red show where the Levich and Koutecký-Levich currents were determined. (b) Levich plot. (c) Koutecký–Levich plot. (d) Tafel plot. The dashed lines in subplots (b)–(d) are extensions of the linear regression lines to x = 0. Figure 4.12: RDE experiment of 5mM HQ in 1M KOH recorded on a GC WE. (a) Linear sweep voltammograms recorded at 5mVs−1 in the anodic direction at rotation rates from 100–2500 rpm. The area shaded in blue shows where the Levich currents were determined. (b) Levich plot. The dashed line is an extension of the linear regression to x = 0. 56PDF Image | Organic Redox Flow Batteries 2023
