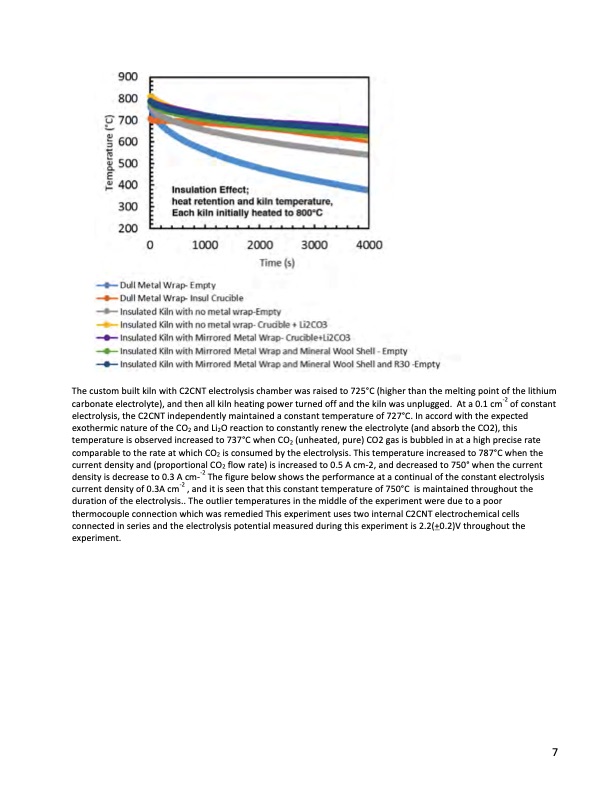

The custom built kiln with C2CNT electrolysis chamber was raised to 725°C (higher than the melting point of the lithium carbonate electrolyte), and then all kiln heating power turned off and the kiln was unplugged. At a 0.1 cm-2 of constant electrolysis, the C2CNT independently maintained a constant temperature of 727°C. In accord with the expected exothermic nature of the CO2 and Li2O reaction to constantly renew the electrolyte (and absorb the CO2), this temperature is observed increased to 737°C when CO2 (unheated, pure) CO2 gas is bubbled in at a high precise rate comparable to the rate at which CO2 is consumed by the electrolysis. This temperature increased to 787°C when the current density and (proportional CO2 flow rate) is increased to 0.5 A cm-2, and decreased to 750° when the current density is decrease to 0.3 A cm--2 The figure below shows the performance at a continual of the constant electrolysis current density of 0.3A cm-2 , and it is seen that this constant temperature of 750°C is maintained throughout the duration of the electrolysis.. The outlier temperatures in the middle of the experiment were due to a poor thermocouple connection which was remedied This experiment uses two internal C2CNT electrochemical cells connected in series and the electrolysis potential measured during this experiment is 2.2(+0.2)V throughout the experiment. 7PDF Image | Xprize
