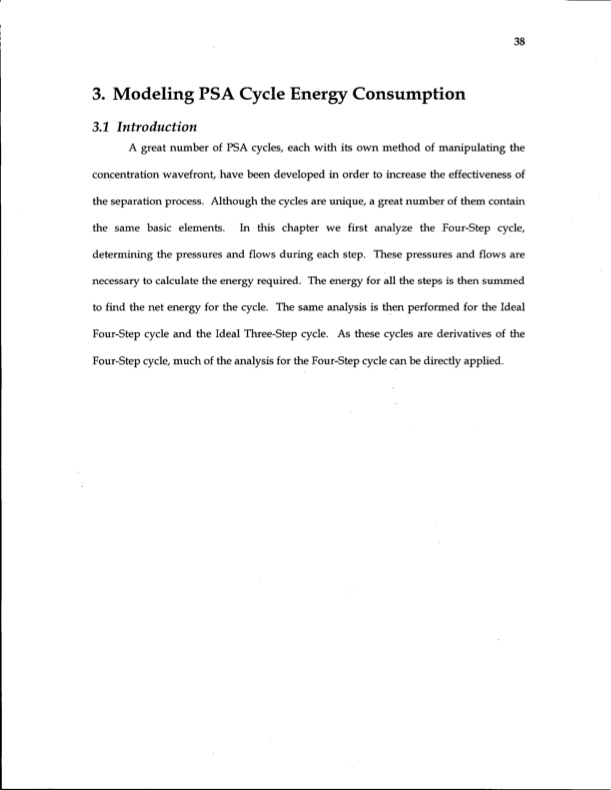

3. Modeling PSA Cycle Energy Consumption 3.1 Introduction A great number of PSA cycles, each with its own method of mampulating the concentration wavefront, have been developed in order to increase the effectiveness of the separation process. Although the cycles are unique, a great number of them contain the same basic elements. In this chapter we first analyze the Four-Step cycle, determining the pressures and flows during each step. These pressures and flows are necessary to calculate the energy required. The energy for all the steps is then summed to find the net energy for the cycle. The same analysis is then performed for the Ideal Four-Step cycle and the Ideal Three-Step cycle. As these cycles are derivatives of the Four-Step cycle, much of the analysis for the Four-Step cycle can be directly applied. 38PDF Image | Energy Efficiency of Gas Separation Pressure Swing Adsorption
