Text from PDF Page: 072

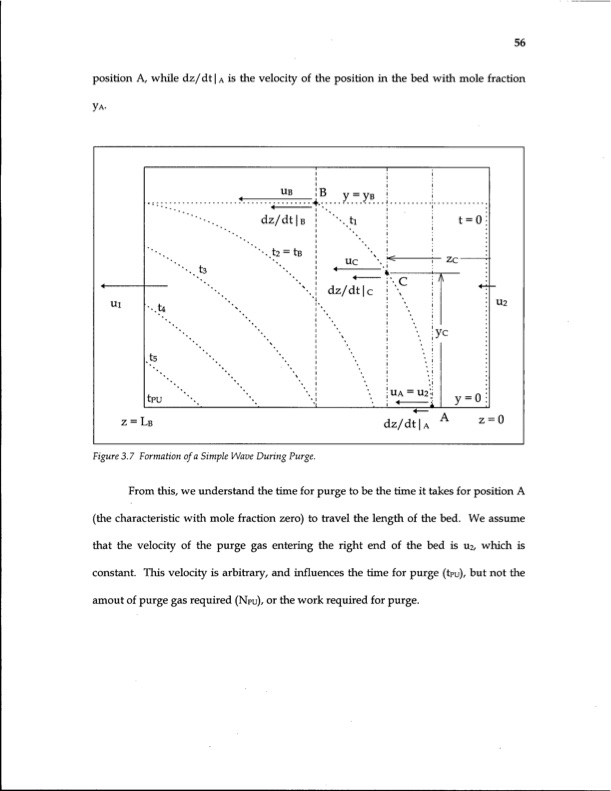

56 position A,while dz/ dt |Ais the velocity of the position in the bed with mole fraction yA . Figure3.7FormationofaSimpleWaveDuringPurge. From this, we understand the time for purge to be the time it takes for position A (the characteristic with mole fraction zero) to travel the length of the bed. We assume that the velocity of the purge gas entering the right end of the bed is u2 , which is constant. This velocity is arbitrary, and influences the time for purge (tpu), but not the amout of purge gas required (Npu), or the work required for purge.
