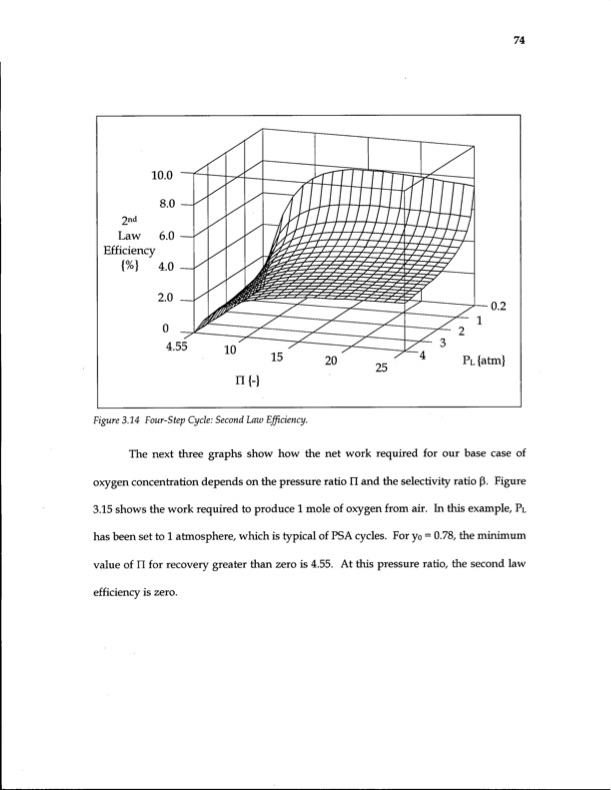

n{-} Figure 3.14 Four-Step Cycle: Second Law Efficiency. The next three graphs show how the net work required for our base case of oxygen concentration depends on the pressure ratio IT and the selectivity ratio p. Figure 3.15 shows the work required to produce 1 mole of oxygen from air. In this example, PL has been set to 1 atmosphere, which is typical of PSA cycles. For yo = 0.78, the minimum value of n for recovery greater than zero is 4.55. At this pressure ratio, the second law efficiency is zero. 74PDF Image | Energy Efficiency of Gas Separation Pressure Swing Adsorption
