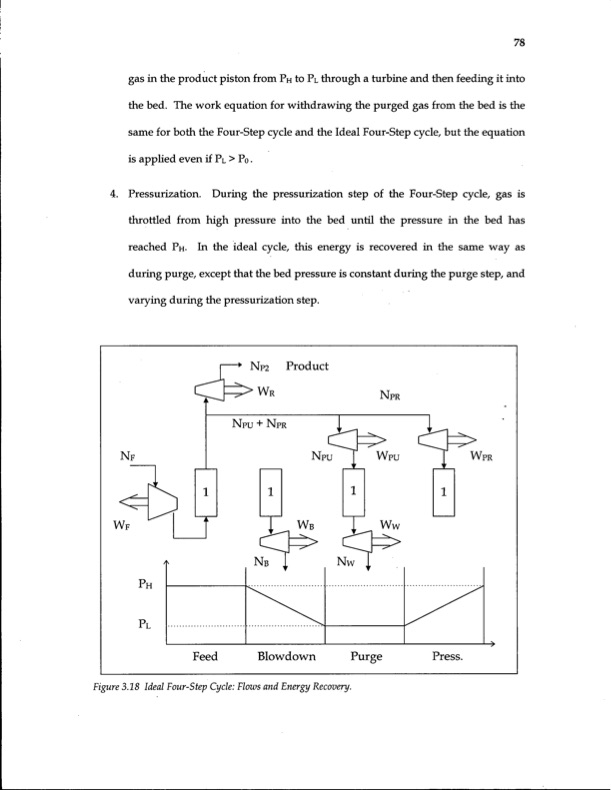

gas in the product piston from PHto PLthrough a turbine and then feeding it into the bed. The work equation for withdrawing the purged gas from the bed is the same for both the Four-Step cycle and the Ideal Four-Step cycle, but the equation is applied even if PL > Po. 4. Pressurization. During the pressurization step of the Four-Step cycle, gas is throttled from high pressure into the bed until the pressure in the bed has reached PH. In the ideal cycle, this energy is recovered in the same way as during purge, except that the bed pressure is constant during the purge step, and varying during the pressurization step. Feed Blowdown Purge Press. Figure 3.18 Ideal Four-Step Cycle: Flows and Energy Recovery. 78PDF Image | Energy Efficiency of Gas Separation Pressure Swing Adsorption
