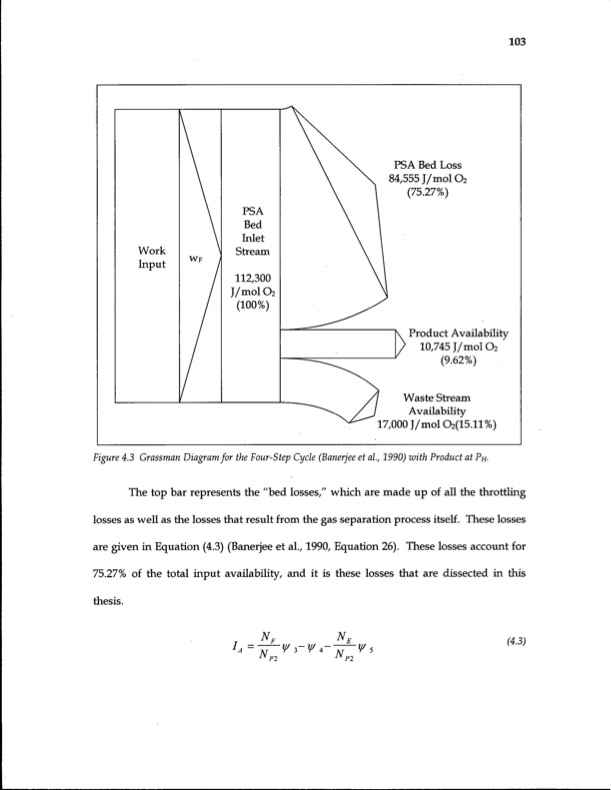

Work Input WF , PSA Bed Inlet Stream 112,300 J/mol O2 (100%) Figure4.3 GrassmanDiagramfortheFour-StepCycle(Banerjeeetal,1990)withProductatPH- The top bar represents the "bed losses," which are made up of all the throttling losses as well as the losses that result from the gas separation process itself. These losses are given in Equation (4.3) (Banerjee et al., 1990, Equation 26). These losses account for 75.27% of the total input availabuity, and it is these losses that are dissected in this thesis. N P2 N P2 PSA Bed Loss 84,555 J/mol 0 2 (75.27%) \ ) V Product Avariability 10,745 J / m o l O2 (9.62%) Waste Stream Availability 17,000 J/mol 02(15.11%) 103 (4.3)PDF Image | Energy Efficiency of Gas Separation Pressure Swing Adsorption
