Text from PDF Page: 091

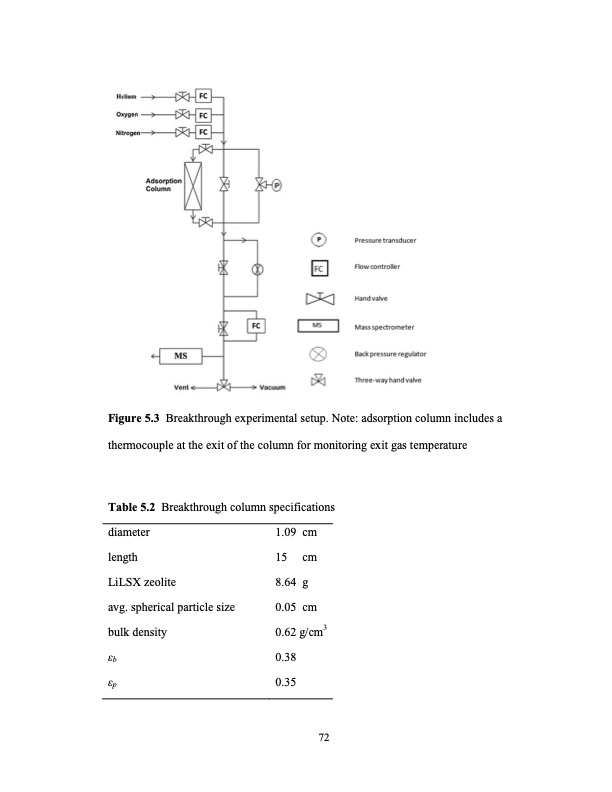

Figure 5.3 Breakthrough experimental setup. Note: adsorption column includes a thermocouple at the exit of the column for monitoring exit gas temperature Table 5.2 Breakthrough column specifications diameter length LiLSX zeolite avg. spherical particle size bulk density εb εp 1.09 cm 15 cm 8.64 g 0.05 cm 0.62 g/cm3 0.38 0.35 72
