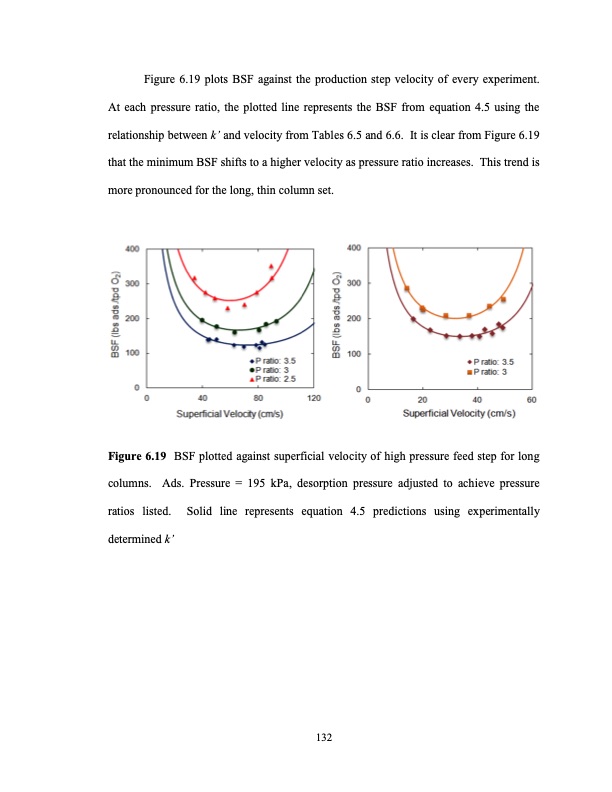

Figure 6.19 plots BSF against the production step velocity of every experiment. At each pressure ratio, the plotted line represents the BSF from equation 4.5 using the relationship between k’ and velocity from Tables 6.5 and 6.6. It is clear from Figure 6.19 that the minimum BSF shifts to a higher velocity as pressure ratio increases. This trend is more pronounced for the long, thin column set. Figure 6.19 BSF plotted against superficial velocity of high pressure feed step for long columns. Ads. Pressure = 195 kPa, desorption pressure adjusted to achieve pressure ratios listed. Solid line represents equation 4.5 predictions using experimentally determined k’ 132PDF Image | LIMITS OF SMALL SCALE PRESSURE SWING ADSORPTION
