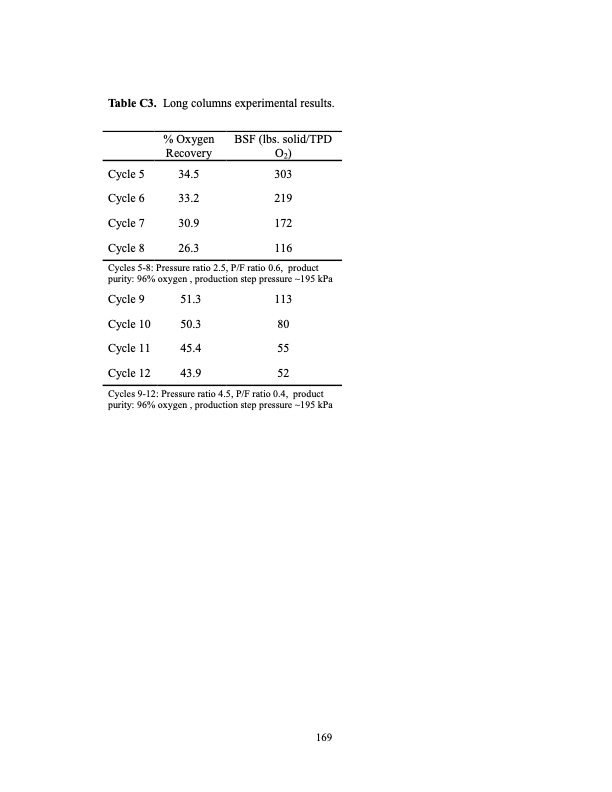

Table C3. Long columns experimental results. Cycle 5 Cycle 6 Cycle 7 Cycle 8 % Oxygen Recovery 34.5 33.2 30.9 26.3 BSF (lbs. solid/TPD O2) 303 219 172 116 Cycles 5-8: Pressure ratio 2.5, P/F ratio 0.6, product purity: 96% oxygen , production step pressure ~195 kPa Cycle 9 51.3 113 Cycle 10 50.3 80 Cycle 11 45.4 55 Cycle 12 43.9 52 Cycles 9-12: Pressure ratio 4.5, P/F ratio 0.4, product purity: 96% oxygen , production step pressure ~195 kPa 169PDF Image | LIMITS OF SMALL SCALE PRESSURE SWING ADSORPTION
