Text from PDF Page: 189

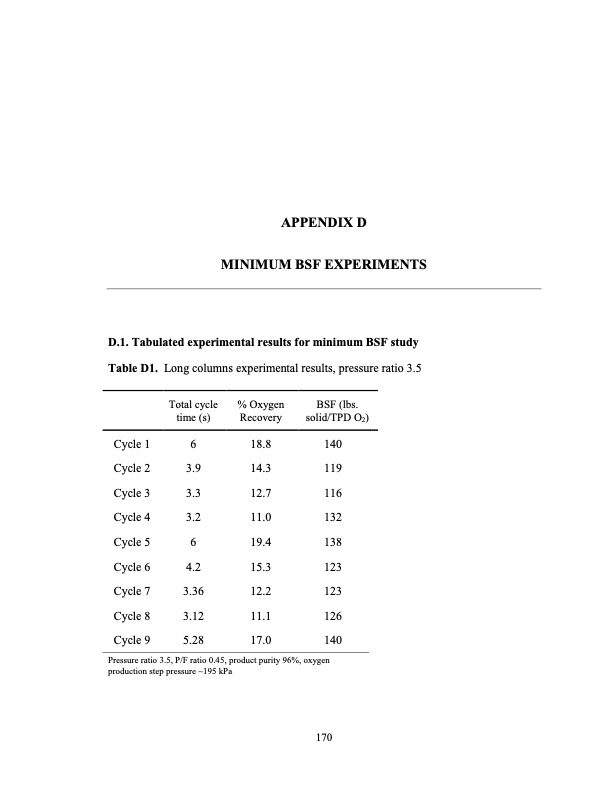

APPENDIX D MINIMUM BSF EXPERIMENTS D.1. Tabulated experimental results for minimum BSF study Table D1. Long columns experimental results, pressure ratio 3.5 Cycle 1 Cycle 2 Cycle 3 Cycle 4 Cycle 5 Cycle 6 Cycle 7 Cycle 8 Cycle 9 Total cycle time (s) 6 3.9 3.3 3.2 6 4.2 3.36 3.12 5.28 % Oxygen Recovery 18.8 14.3 12.7 11.0 19.4 15.3 12.2 11.1 17.0 BSF (lbs. solid/TPD O2) 140 119 116 132 138 123 123 126 140 Pressure ratio 3.5, P/F ratio 0.45, product purity 96%, oxygen production step pressure ~195 kPa 170PDF Image | LIMITS OF SMALL SCALE PRESSURE SWING ADSORPTION
