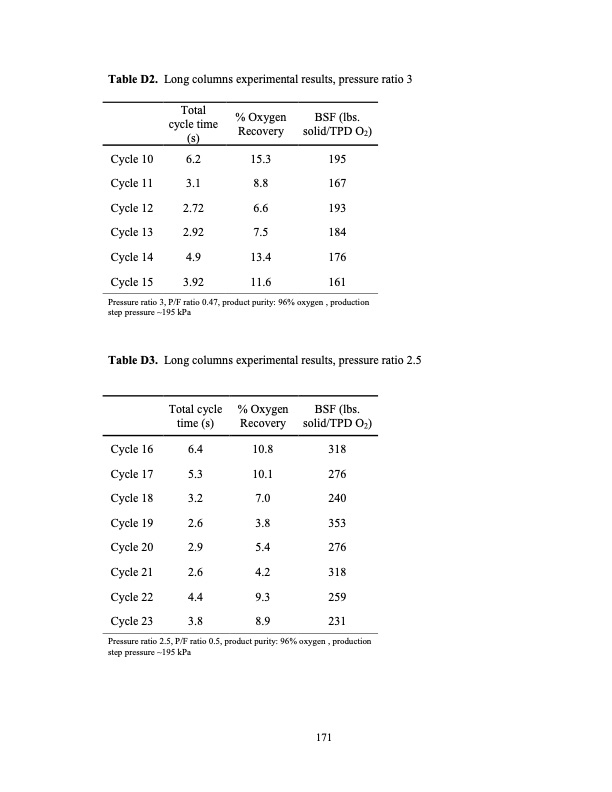

Table D2. Long columns experimental results, pressure ratio 3 Total cycle time (s) % Oxygen Recovery BSF (lbs. solid/TPD O2) 195 167 193 184 176 161 Cycle 10 Cycle 11 Cycle 12 Cycle 13 Cycle 14 Cycle 15 6.2 15.3 3.1 8.8 2.72 6.6 2.92 7.5 4.9 13.4 3.92 11.6 Pressure ratio 3, P/F ratio 0.47, product purity: 96% oxygen , production step pressure ~195 kPa Table D3. Long columns experimental results, pressure ratio 2.5 Cycle 16 Cycle 17 Cycle 18 Cycle 19 Cycle 20 Cycle 21 Cycle 22 Cycle 23 Total cycle time (s) 6.4 5.3 3.2 2.6 2.9 2.6 4.4 3.8 % Oxygen Recovery 10.8 10.1 7.0 3.8 5.4 4.2 9.3 8.9 BSF (lbs. solid/TPD O2) 318 276 240 353 276 318 259 231 Pressure ratio 2.5, P/F ratio 0.5, product purity: 96% oxygen , production step pressure ~195 kPa 171PDF Image | LIMITS OF SMALL SCALE PRESSURE SWING ADSORPTION
