Text from PDF Page: 191

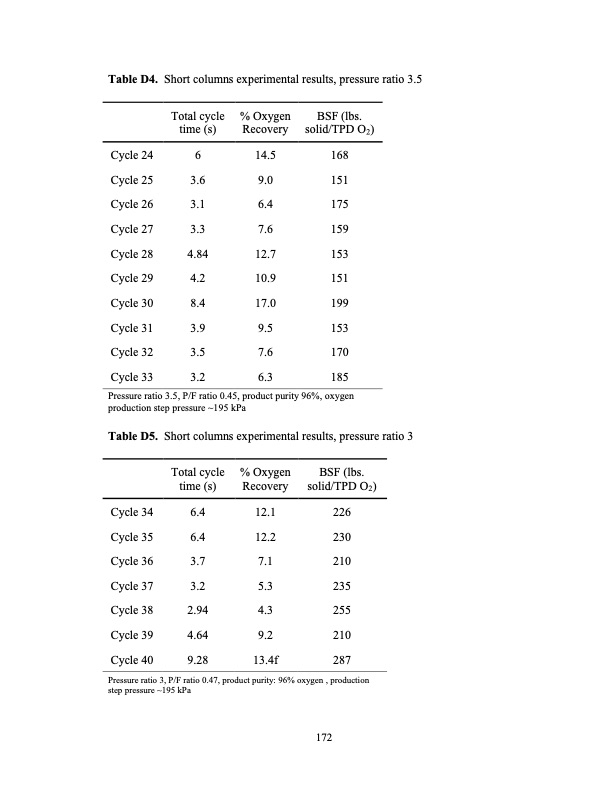

Table D4. Short columns experimental results, pressure ratio 3.5 Cycle 24 Cycle 25 Cycle 26 Cycle 27 Cycle 28 Cycle 29 Cycle 30 Cycle 31 Cycle 32 Cycle 33 Total cycle % Oxygen time (s) Recovery 6 14.5 3.6 9.0 3.1 6.4 3.3 7.6 4.84 12.7 BSF (lbs. solid/TPD O2) 168 151 175 159 153 151 199 153 170 185 4.2 8.4 3.9 3.5 3.2 10.9 17.0 9.5 7.6 6.3 Pressure ratio 3.5, P/F ratio 0.45, product purity 96%, oxygen production step pressure ~195 kPa Table D5. Short columns experimental results, pressure ratio 3 Cycle 34 Cycle 35 Cycle 36 Cycle 37 Cycle 38 Cycle 39 Cycle 40 Total cycle time (s) 6.4 6.4 3.7 3.2 2.94 4.64 9.28 % Oxygen Recovery 12.1 12.2 7.1 5.3 4.3 9.2 13.4f BSF (lbs. solid/TPD O2) 226 230 210 235 255 210 287 Pressure ratio 3, P/F ratio 0.47, product purity: 96% oxygen , production step pressure ~195 kPa 172PDF Image | LIMITS OF SMALL SCALE PRESSURE SWING ADSORPTION
