Text from PDF Page: 077

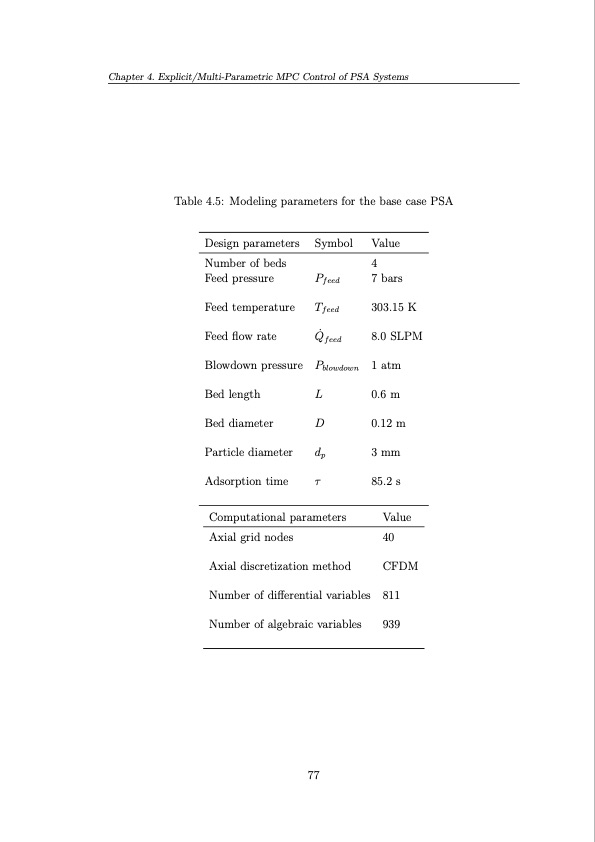

Chapter 4. Explicit/Multi-Parametric MPC Control of PSA Systems Table 4.5: Modeling parameters for the base case PSA Design parameters Number of beds Feed pressure Feed temperature Feed flow rate Blowdown pressure Bed length Bed diameter Particle diameter Adsorption time Symbol Pfeed Tfeed Q ̇feed Pblowdown L D dp τ Value 4 7 bars 303.15 K 8.0 SLPM 1 atm 0.6 m 0.12 m 3 mm 85.2 s Value 40 CFDM 811 939 Computational parameters Axial grid nodes Axial discretization method Number of differential variables Number of algebraic variables 77PDF Image | Operation and Control of Pressure Swing Adsorption Systems
PDF Search Title:
Operation and Control of Pressure Swing Adsorption SystemsOriginal File Name Searched:
Khajuria-H-2011-PhD-Thesis.pdfDIY PDF Search: Google It | Yahoo | Bing
