Text from PDF Page: 078

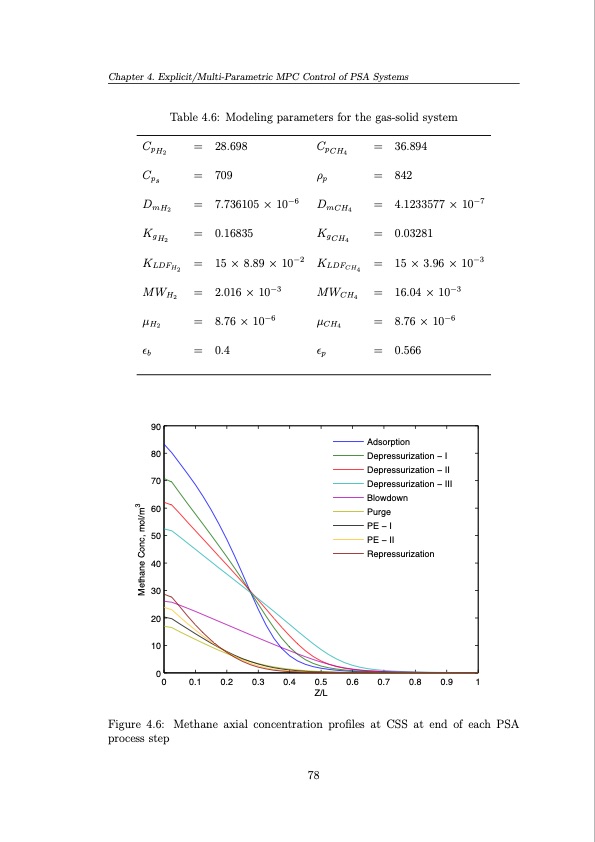

Chapter 4. Explicit/Multi-Parametric MPC Control of PSA Systems Cp H2 Cps Dm H2 Kg H2 KLDFH2 M WH2 μH2 εb = 28.698 = 709 = 7.736105 × 10−6 = 0.16835 = 15×8.89×10−2 = 2.016 × 10−3 = 8.76 × 10−6 = 0.4 CpCH4 ρp DmCH4 KgCH4 KLDFCH4 MWCH4 μC H4 εp = 36.894 = 842 = 4.1233577 × 10−7 = 0.03281 = 15×3.96×10−3 = 16.04 × 10−3 = 8.76 × 10−6 = 0.566 Table 4.6: Modeling parameters for the gas-solid system 90 80 70 60 50 40 30 20 10 0 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Z/L Adsorption Depressurization − I Depressurization − II Depressurization − III Blowdown Purge PE − I PE − II Repressurization Figure 4.6: Methane axial concentration profiles at process step CSS at end of each PSA 78 3 Methane Conc, mol/mPDF Image | Operation and Control of Pressure Swing Adsorption Systems
