Text from PDF Page: 081

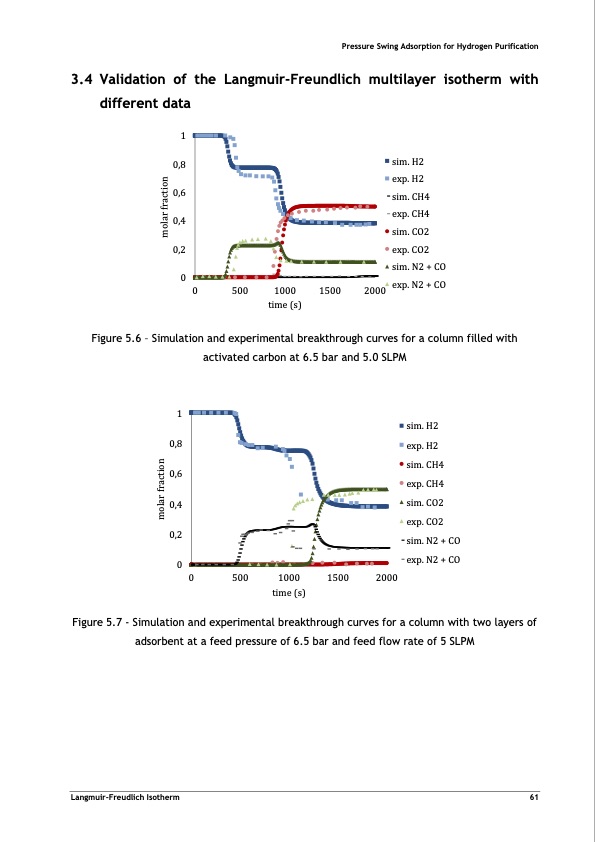

3.4 Validation of the Langmuir-Freundlich multilayer isotherm with different data Pressure Swing Adsorption for Hydrogen Purification 1 0,8 0,6 0,4 0,2 0 sim. H2 exp. H2 sim. CH4 exp. CH4 sim. CO2 exp. CO2 sim. N2 + CO exp. N2 + CO 0 500 1000 1500 2000 time (s) Figure 5.6 – Simulation and experimental breakthrough curves for a column filled with activated carbon at 6.5 bar and 5.0 SLPM 1 0,8 0,6 0,4 0,2 0 sim. H2 exp. H2 sim. CH4 exp. CH4 sim. CO2 exp. CO2 sim. N2 + CO exp. N2 + CO 0 500 1000 1500 2000 time (s) Figure 5.7 - Simulation and experimental breakthrough curves for a column with two layers of adsorbent at a feed pressure of 6.5 bar and feed flow rate of 5 SLPM Langmuir-Freudlich Isotherm 61 molar fraction molar fractionPDF Image | PRESSURE SWING ADSORPTION FOR THE PURIFICATION OF HYDROGEN
