Text from PDF Page: 082

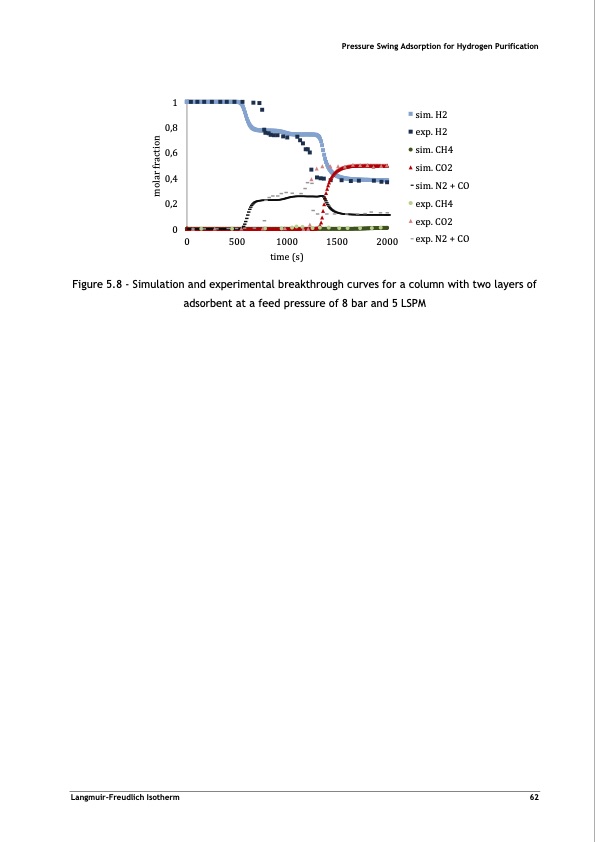

Figure 5.8 - Simulation and experimental breakthrough curves for a column with two layers of adsorbent at a feed pressure of 8 bar and 5 LSPM Pressure Swing Adsorption for Hydrogen Purification 1 0,8 0,6 0,4 0,2 0 sim. H2 exp. H2 sim. CH4 sim. CO2 sim. N2 + CO exp. CH4 exp. CO2 exp. N2 + CO 0 500 1000 1500 2000 time (s) Langmuir-Freudlich Isotherm 62 molar fraction
