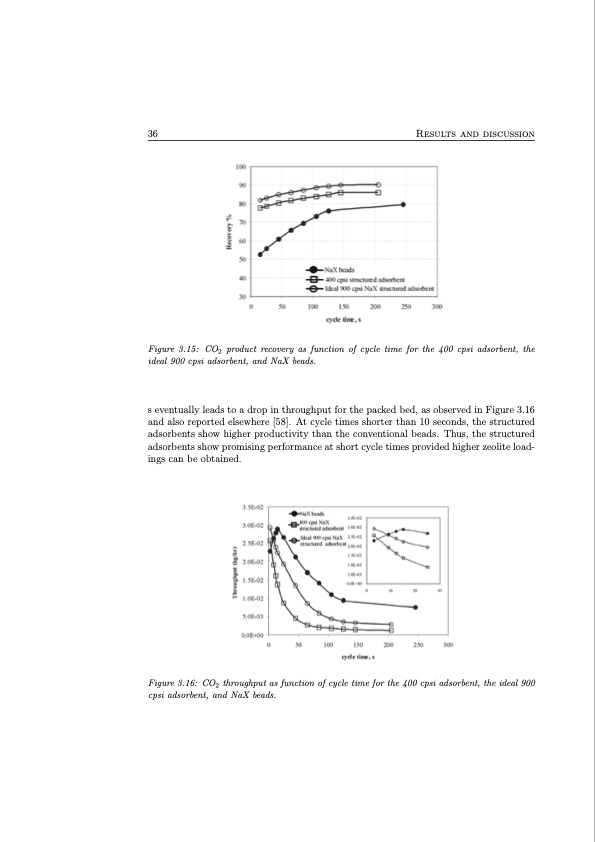

36 Results and discussion Figure 3.15: CO2 product recovery as function of cycle time for the 400 cpsi adsorbent, the ideal 900 cpsi adsorbent, and NaX beads. s eventually leads to a drop in throughput for the packed bed, as observed in Figure 3.16 and also reported elsewhere [58]. At cycle times shorter than 10 seconds, the structured adsorbents show higher productivity than the conventional beads. Thus, the structured adsorbents show promising performance at short cycle times provided higher zeolite load- ings can be obtained. Figure 3.16: CO2 throughput as function of cycle time for the 400 cpsi adsorbent, the ideal 900 cpsi adsorbent, and NaX beads.PDF Image | Structured Zeolite Adsorbents for PSA Applications
