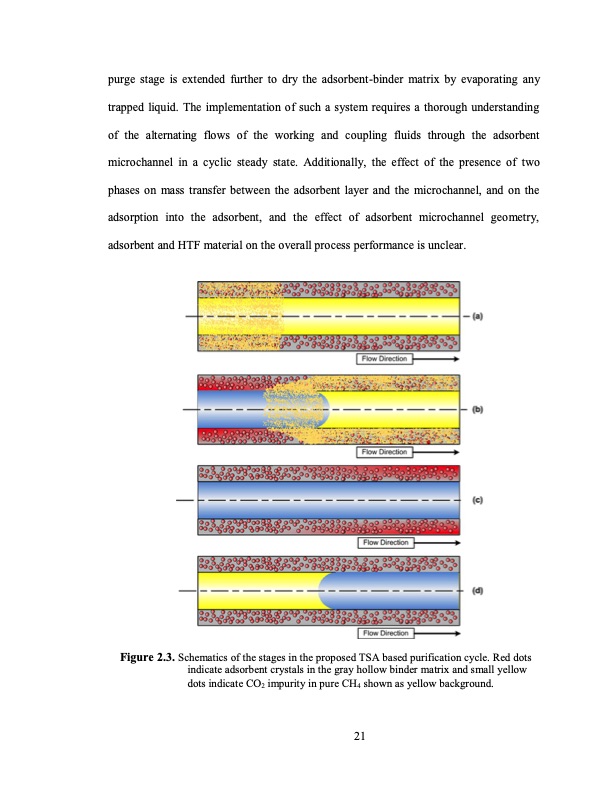

purge stage is extended further to dry the adsorbent-binder matrix by evaporating any trapped liquid. The implementation of such a system requires a thorough understanding of the alternating flows of the working and coupling fluids through the adsorbent microchannel in a cyclic steady state. Additionally, the effect of the presence of two phases on mass transfer between the adsorbent layer and the microchannel, and on the adsorption into the adsorbent, and the effect of adsorbent microchannel geometry, adsorbent and HTF material on the overall process performance is unclear. Figure 2.3. Schematics of the stages in the proposed TSA based purification cycle. Red dots indicate adsorbent crystals in the gray hollow binder matrix and small yellow dots indicate CO2 impurity in pure CH4 shown as yellow background. 21PDF Image | TEMPERATURE SWING ADSORPTION PROCESSES FOR GAS SEPARATION
