PDF Publication Title:
Text from PDF Page: 101

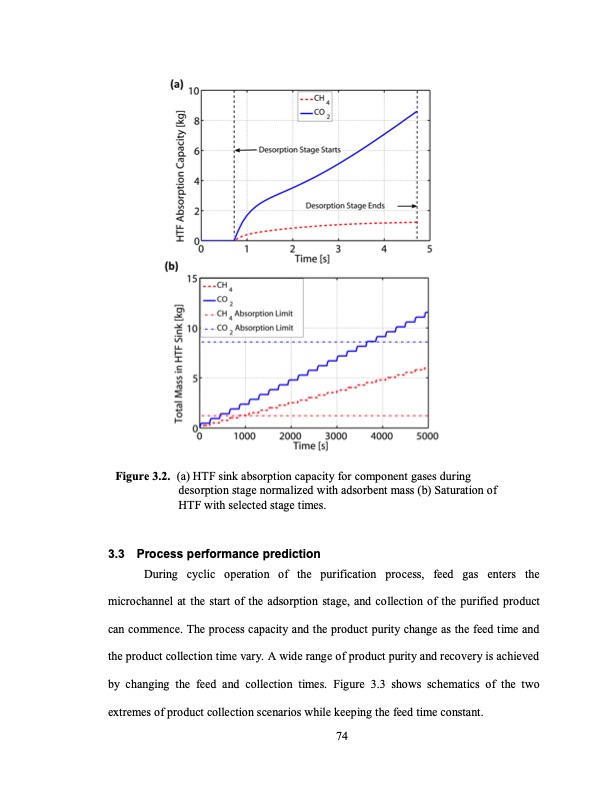

Figure 3.2. (a) HTF sink absorption capacity for component gases during desorption stage normalized with adsorbent mass (b) Saturation of HTF with selected stage times. 3.3 Process performance prediction During cyclic operation of the purification process, feed gas enters the microchannel at the start of the adsorption stage, and collection of the purified product can commence. The process capacity and the product purity change as the feed time and the product collection time vary. A wide range of product purity and recovery is achieved by changing the feed and collection times. Figure 3.3 shows schematics of the two extremes of product collection scenarios while keeping the feed time constant. 74PDF Image | TEMPERATURE SWING ADSORPTION PROCESSES FOR GAS SEPARATION
PDF Search Title:
TEMPERATURE SWING ADSORPTION PROCESSES FOR GAS SEPARATIONOriginal File Name Searched:
PAHINKAR-DISSERTATION-2016.pdfDIY PDF Search: Google It | Yahoo | Bing
