Text from PDF Page: 009

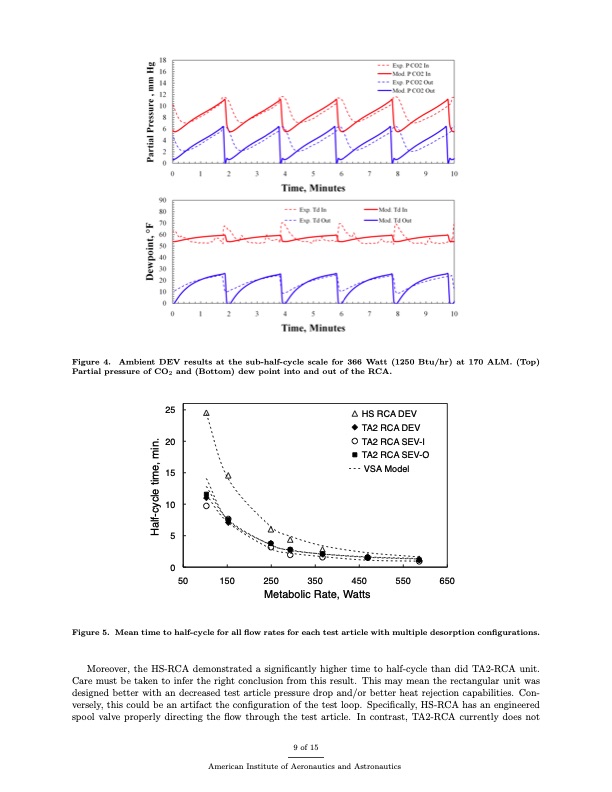

Figure 4. Ambient DEV results at the sub-half-cycle scale for 366 Watt (1250 Btu/hr) at 170 ALM. (Top) Partial pressure of CO2 and (Bottom) dew point into and out of the RCA. HS RCA DEV TA2 RCA DEV TA2 RCA SEV-I TA2 RCA SEV-O MVoSdAeMlodel 25 20 15 10 5 0 50 150 250 350 450 550 650 Metabolic Rate, Watts Figure 5. Mean time to half-cycle for all flow rates for each test article with multiple desorption configurations. Moreover, the HS-RCA demonstrated a significantly higher time to half-cycle than did TA2-RCA unit. Care must be taken to infer the right conclusion from this result. This may mean the rectangular unit was designed better with an decreased test article pressure drop and/or better heat rejection capabilities. Con- versely, this could be an artifact the configuration of the test loop. Specifically, HS-RCA has an engineered spool valve properly directing the flow through the test article. In contrast, TA2-RCA currently does not 9 of 15 American Institute of Aeronautics and Astronautics Half-cycle time, min.PDF Image | Vacuum Swing Adsorption Units for Spacesuit Carbon Dioxide and Humidity Control
