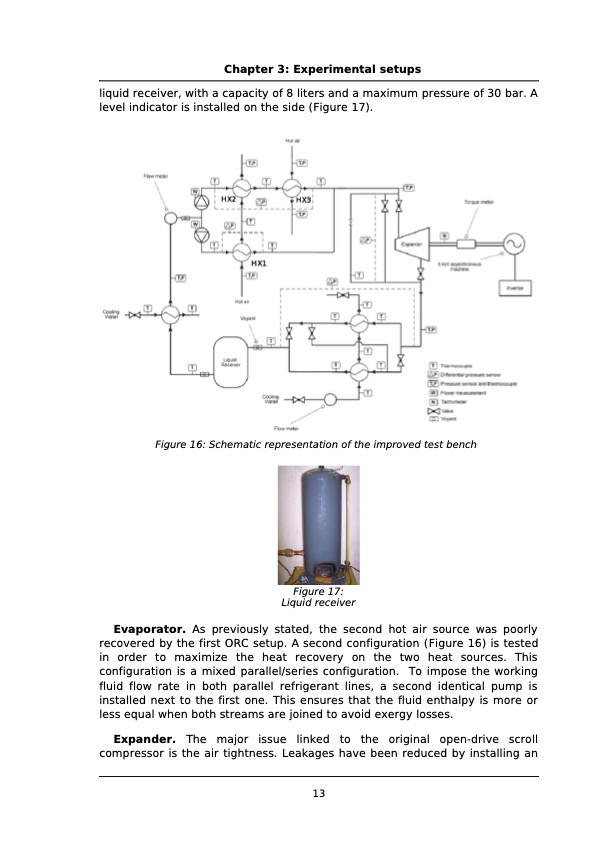

Chapter 3: Experimental setups liquid receiver, with a capacity of 8 liters and a maximum pressure of 30 bar. A level indicator is installed on the side (Figure 17). Figure 16: Schematic representation of the improved test bench Evaporator. As previously stated, the second hot air source was poorly recovered by the first ORC setup. A second configuration (Figure 16) is tested in order to maximize the heat recovery on the two heat sources. This configuration is a mixed parallel/series configuration. To impose the working fluid flow rate in both parallel refrigerant lines, a second identical pump is installed next to the first one. This ensures that the fluid enthalpy is more or less equal when both streams are joined to avoid exergy losses. Expander. The major issue linked to the original open-drive scroll compressor is the air tightness. Leakages have been reduced by installing an Figure 17: Liquid receiver 13PDF Image | Organic Rankine Cycles for Waste Heat Recovery and Solar Uses
