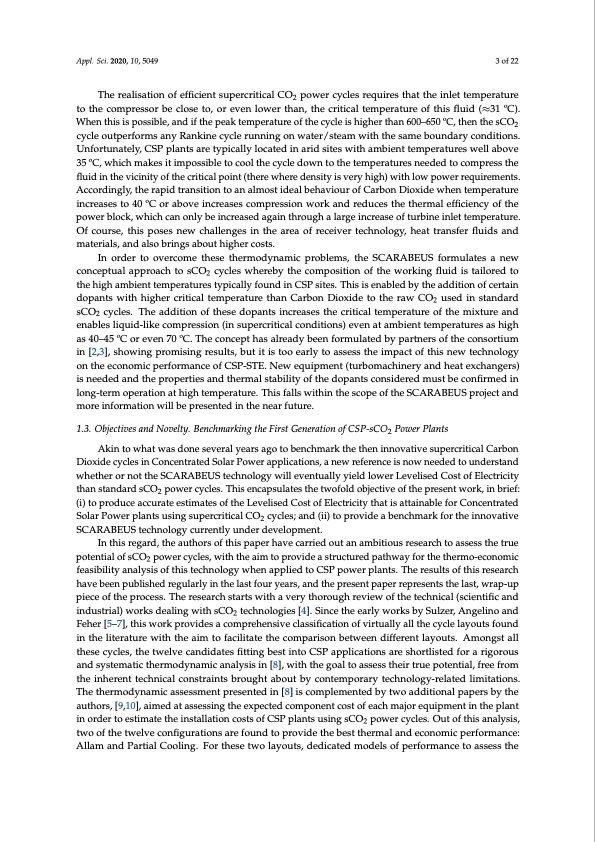

Text from PDF Page: 003
Appl. Sci. 2020, 10, 5049 3 of 22 The realisation of efficient supercritical CO2 power cycles requires that the inlet temperature to the compressor be close to, or even lower than, the critical temperature of this fluid (≈31 oC). When this is possible, and if the peak temperature of the cycle is higher than 600–650 oC, then the sCO2 cycle outperforms any Rankine cycle running on water/steam with the same boundary conditions. Unfortunately, CSP plants are typically located in arid sites with ambient temperatures well above 35 oC, which makes it impossible to cool the cycle down to the temperatures needed to compress the fluid in the vicinity of the critical point (there where density is very high) with low power requirements. Accordingly, the rapid transition to an almost ideal behaviour of Carbon Dioxide when temperature increases to 40 oC or above increases compression work and reduces the thermal efficiency of the power block, which can only be increased again through a large increase of turbine inlet temperature. Of course, this poses new challenges in the area of receiver technology, heat transfer fluids and materials, and also brings about higher costs. In order to overcome these thermodynamic problems, the SCARABEUS formulates a new conceptual approach to sCO2 cycles whereby the composition of the working fluid is tailored to the high ambient temperatures typically found in CSP sites. This is enabled by the addition of certain dopants with higher critical temperature than Carbon Dioxide to the raw CO2 used in standard sCO2 cycles. The addition of these dopants increases the critical temperature of the mixture and enables liquid-like compression (in supercritical conditions) even at ambient temperatures as high as 40–45 oC or even 70 oC. The concept has already been formulated by partners of the consortium in [2,3], showing promising results, but it is too early to assess the impact of this new technology on the economic performance of CSP-STE. New equipment (turbomachinery and heat exchangers) is needed and the properties and thermal stability of the dopants considered must be confirmed in long-term operation at high temperature. This falls within the scope of the SCARABEUS project and more information will be presented in the near future. 1.3. Objectives and Novelty. Benchmarking the First Generation of CSP-sCO2 Power Plants Akin to what was done several years ago to benchmark the then innovative supercritical Carbon Dioxide cycles in Concentrated Solar Power applications, a new reference is now needed to understand whether or not the SCARABEUS technology will eventually yield lower Levelised Cost of Electricity than standard sCO2 power cycles. This encapsulates the twofold objective of the present work, in brief: (i) to produce accurate estimates of the Levelised Cost of Electricity that is attainable for Concentrated Solar Power plants using supercritical CO2 cycles; and (ii) to provide a benchmark for the innovative SCARABEUS technology currently under development. In this regard, the authors of this paper have carried out an ambitious research to assess the true potential of sCO2 power cycles, with the aim to provide a structured pathway for the thermo-economic feasibility analysis of this technology when applied to CSP power plants. The results of this research have been published regularly in the last four years, and the present paper represents the last, wrap-up piece of the process. The research starts with a very thorough review of the technical (scientific and industrial) works dealing with sCO2 technologies [4]. Since the early works by Sulzer, Angelino and Feher [5–7], this work provides a comprehensive classification of virtually all the cycle layouts found in the literature with the aim to facilitate the comparison between different layouts. Amongst all these cycles, the twelve candidates fitting best into CSP applications are shortlisted for a rigorous and systematic thermodynamic analysis in [8], with the goal to assess their true potential, free from the inherent technical constraints brought about by contemporary technology-related limitations. The thermodynamic assessment presented in [8] is complemented by two additional papers by the authors, [9,10], aimed at assessing the expected component cost of each major equipment in the plant in order to estimate the installation costs of CSP plants using sCO2 power cycles. Out of this analysis, two of the twelve configurations are found to provide the best thermal and economic performance: Allam and Partial Cooling. For these two layouts, dedicated models of performance to assess thePDF Image | Supercritical CO2 Power Solar Power Plants
