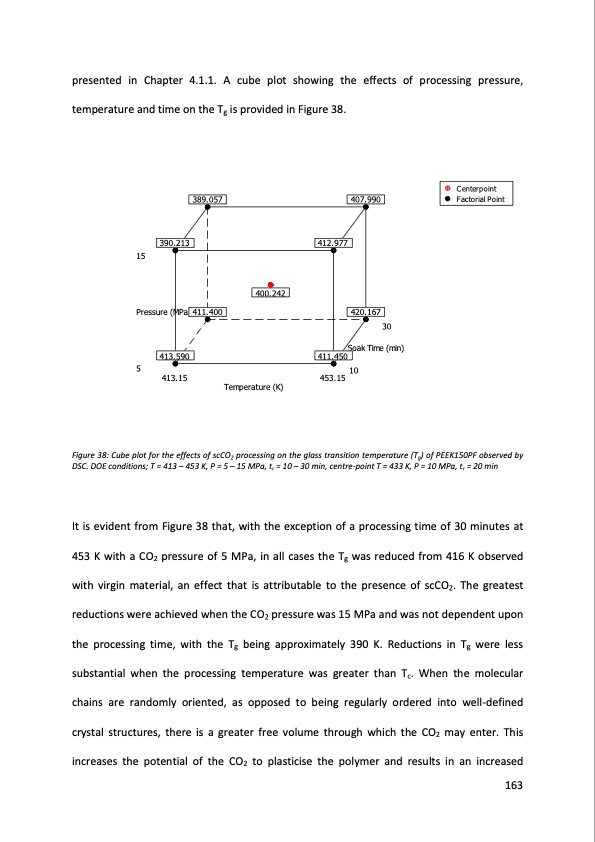

presented in Chapter 4.1.1. A cube plot showing the effects of processing pressure, temperature and time on the Tg is provided in Figure 38. 390.213 389.057 412.977 407.990 Centerpoint Factorial Point 15 Pressure (MPa) 411.400 5 30 Soak Time (min) 453.15 10 413.15 Temperature (K) 400.242 Figure 38: Cube plot for the effects of scCO2 processing on the glass transition temperature (Tg) of PEEK150PF observed by DSC. DOE conditions; T = 413 – 453 K, P = 5 – 15 MPa, tr = 10 – 30 min, centre-point T = 433 K, P = 10 MPa, tr = 20 min It is evident from Figure 38 that, with the exception of a processing time of 30 minutes at 453 K with a CO2 pressure of 5 MPa, in all cases the Tg was reduced from 416 K observed with virgin material, an effect that is attributable to the presence of scCO2. The greatest reductions were achieved when the CO2 pressure was 15 MPa and was not dependent upon the processing time, with the Tg being approximately 390 K. Reductions in Tg were less substantial when the processing temperature was greater than Tc. When the molecular chains are randomly oriented, as opposed to being regularly ordered into well-defined crystal structures, there is a greater free volume through which the CO2 may enter. This increases the potential of the CO2 to plasticise the polymer and results in an increased 163 420.167 413.590 411.450PDF Image | Supercritical Fluids and Their Application to the Recycling of High-Performance Carbon Fibre Reinforced Composite Materials
